1956124 - Phoenix Contact

Description: CCVA 2,5/ 6-G-5,08 RNP26THR - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: CCVA 2,5/..-G-RN, pitch: 5.08 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2

Download 1956124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1956124 - Phoenix Contact - PCB symbol
click to zoom

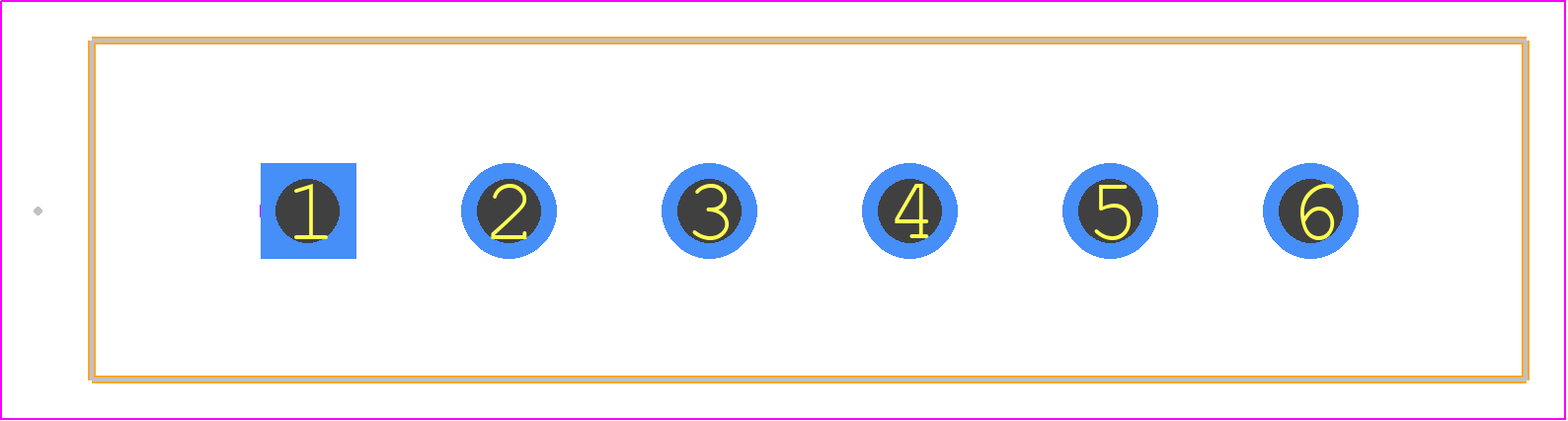

PCB Footprints
1956124 - Phoenix Contact PCB footprint - Other - Other - 1956124
click to zoom
3D Models
1956124 - Phoenix Contact - 3D model - Other - 1956124
click to zoom

1956124 Details

  • Manufacturer Part Number:

    1956124

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.54

  • Additional Feature:

    LCP, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1956124 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 1956124 connector onto a panel is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1956124 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's crucial to ensure the wire gauge meets the connector's mechanical and electrical requirements. Consult with Phoenix Contact or a qualified engineer for guidance on wire gauge selection.
  • To ensure proper mating and unmating of the 1956124 connector, follow the recommended mating and unmating forces specified in the datasheet. Additionally, ensure the connector is properly aligned and seated during mating, and use a gentle rocking motion when unmating.
  • Yes, the 1956124 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and PCB connectors. However, it's essential to verify compatibility with specific products and configurations to ensure proper operation and safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1956124 Overview

Use the download button to access the 1956124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19561, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
