Part Image

1969805-1 - TE Connectivity

Description: Configuration Features: Number of Positions 4 | Number of Rows 1 | Number of Power Positions 4 | PCB Mount Orientation Right Angle | Contact Features: Contact Type Pin | Contact Mating Area Plating Material Tin | Contact Retention Within Housing Without | Contact Mating Area Plating Material Thickness 3.81 – 5.08 MICM | PCB Contact Termination Area Plating Material Pre-Tin | Contact Current Rating (Max) 12 AMP | Contact Mating Area Plating Material Thickness 150 – 200 MICIN | Electrical Characteristics:

Download 1969805-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1969805-1 - TE Connectivity - PCB symbol
click to zoom

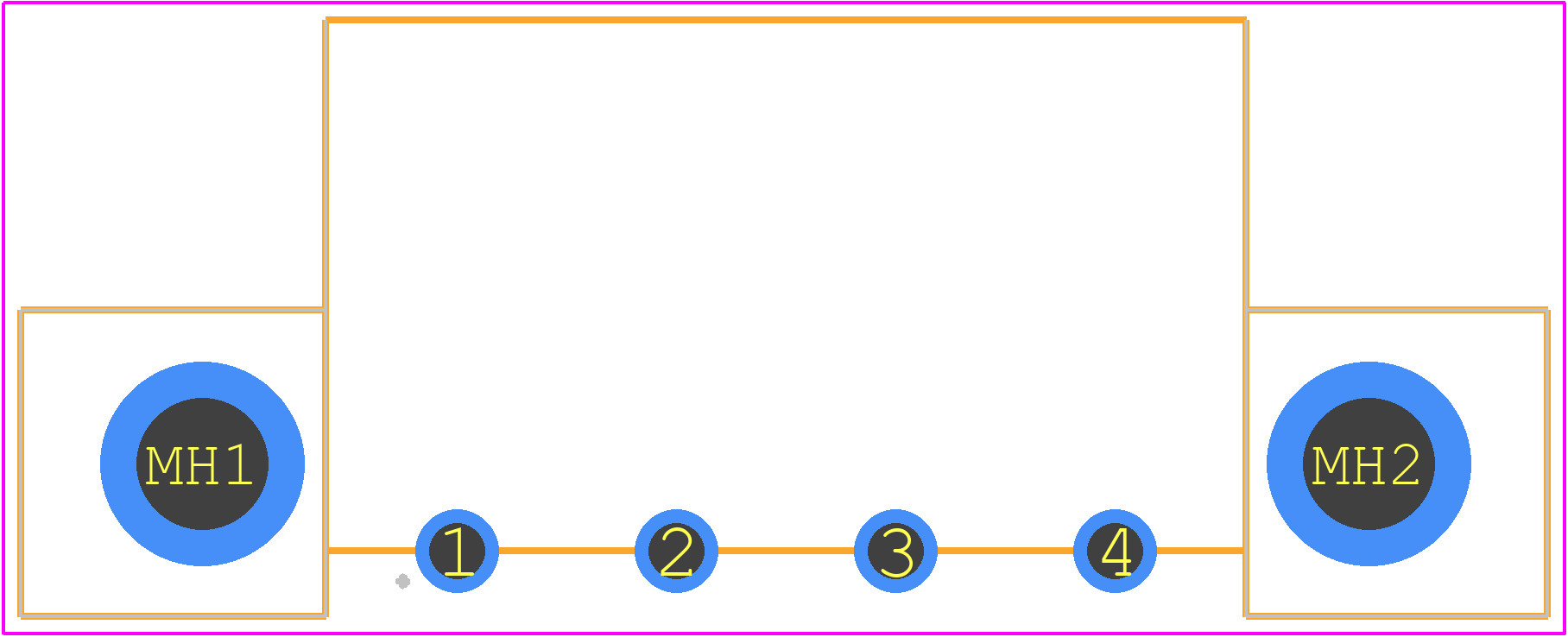

PCB Footprints
1969805-1 - TE Connectivity PCB footprint - Other - Other - 1969805-1-3
click to zoom
3D Models
1969805-1 - TE Connectivity - 3D model - Other - 1969805-1-3
click to zoom

1969805-1 Details

  • Manufacturer Part Number:

    1969805-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Body Breadth:

    0.359 inch

  • Body Depth:

    0.679 inch

  • Body Length:

    1.744 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    12A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Rated Current (Signal):

    12 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1969805-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1969805-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 1969805-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from cold storage to high-temperature industrial environments.
  • Yes, the 1969805-1 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of compatible products, including receptacles, plugs, and accessories. This allows for flexibility in design and ease of integration with other TE Connectivity products.
  • The 1969805-1 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. This makes it suitable for use in harsh environments where exposure to water or dust is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1969805-1 Overview

Use the download button to access the 1969805-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19698, or try a keyword search, such as Power Connectors
