1969806-1 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Right Angle | Number of Positions 4 | Number of Power Positions 4 | Number of Rows 1 | Contact Features: Contact Mating Area Plating Material Thickness 150 – 200 MICIN | Contact Mating Area Plating Material Thickness 3.81 – 5.08 MICM | Contact Current Rating (Max) 12 AMP | Contact Type Socket | Contact Retention Within Housing Without | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Tin | Electrical Characteristics:

Download 1969806-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1969806-1 - TE Connectivity - PCB symbol
click to zoom

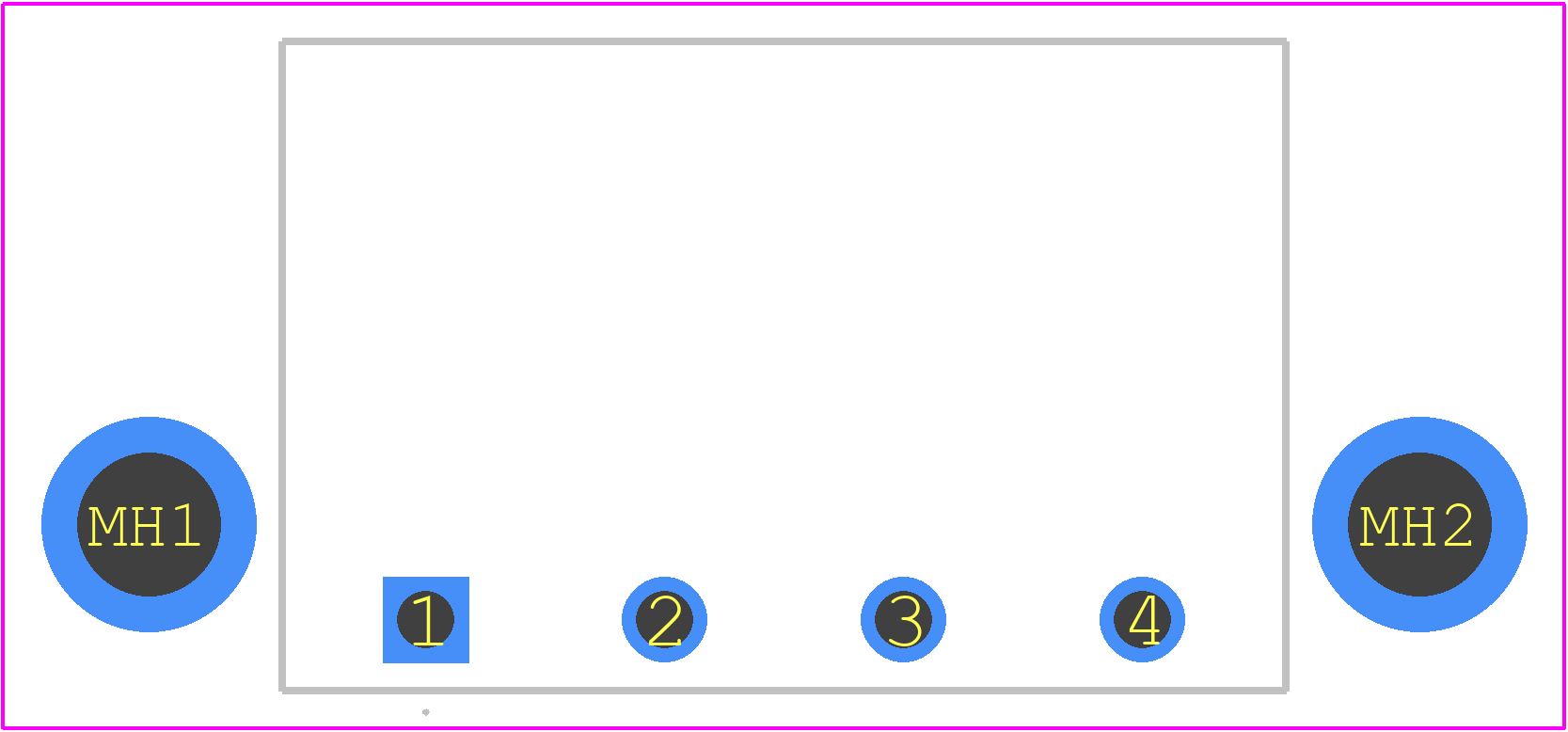

PCB Footprints
1969806-1 - TE Connectivity PCB footprint - Other - Other - 1969806-1-3
click to zoom
3D Models
1969806-1 - TE Connectivity - 3D model - Other - 1969806-1-3
click to zoom

1969806-1 Details

  • Manufacturer Part Number:

    1969806-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Body Breadth:

    0.359 inch

  • Body Depth:

    0.679 inch

  • Body Length:

    1.744 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    12A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Rated Current (Signal):

    12 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1969806-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1969806-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments. However, using larger wire sizes may not be possible due to the terminal design. Consult with TE Connectivity or a qualified engineer for specific guidance.
  • To ensure reliable connections in high-temperature environments, make sure to follow proper termination techniques, use the recommended wire insulation, and apply a suitable contact lubricant. Additionally, consider using a connector with a higher temperature rating or a specialized high-temperature connector.
  • The 1969806-1 connector is designed for general-purpose applications and may not be suitable for harsh environments. If you need to use the connector in such environments, consider using a connector with specialized coatings or materials, such as those with IP67 or IP69K ratings. Consult with TE Connectivity or a qualified engineer for specific guidance.
