1974780000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 4, THT/THR solder connection, Box

Download 1974780000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1974780000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

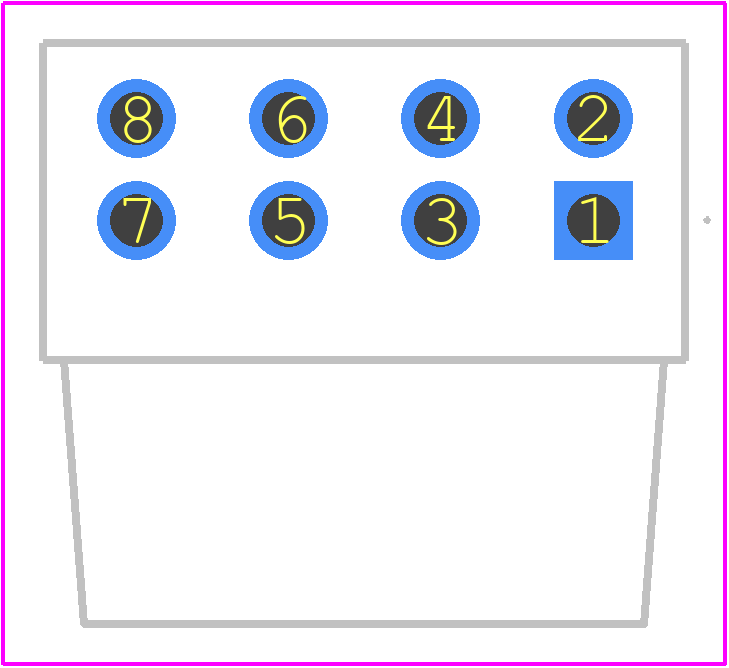

1974780000 - Weidmüller PCB footprint - Other - Other - 1974780000-2
click to zoom
3D Models
1974780000 - Weidmüller - 3D model - Other - 1974780000-2
click to zoom

1974780000 Details

  • Manufacturer Part Number:

    1974780000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1974780000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1974780000 is -40°C to 85°C, as specified by Weidmüller Interface GmbH & Co. KG.
  • Yes, the 1974780000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended torque for the screw terminals on the 1974780000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller Interface GmbH & Co. KG.
  • The 1974780000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications only.
  • The typical lead time for delivery of the 1974780000 varies depending on the region and availability. It is recommended to check with Weidmüller Interface GmbH & Co. KG or an authorized distributor for the most up-to-date lead time information.
