1980666 - Phoenix Contact

Description: PCB headers, nominal cross section: 4 mm², color: gray, nominal current: 26 A, rated voltage (III/2): 1000 V, contact surface: Tin, contact connection type: Pin, number of rows: 1, number of positions: 9, product range: ST 4-PCB/..-G, pitch: 6.2 mm, mounting: Wave soldering, pin layout: Zigzag pinning W, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, locking clip: - without locking clip, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packe

Download 1980666 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

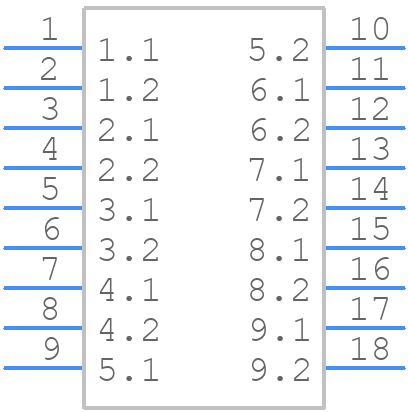

1980666 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

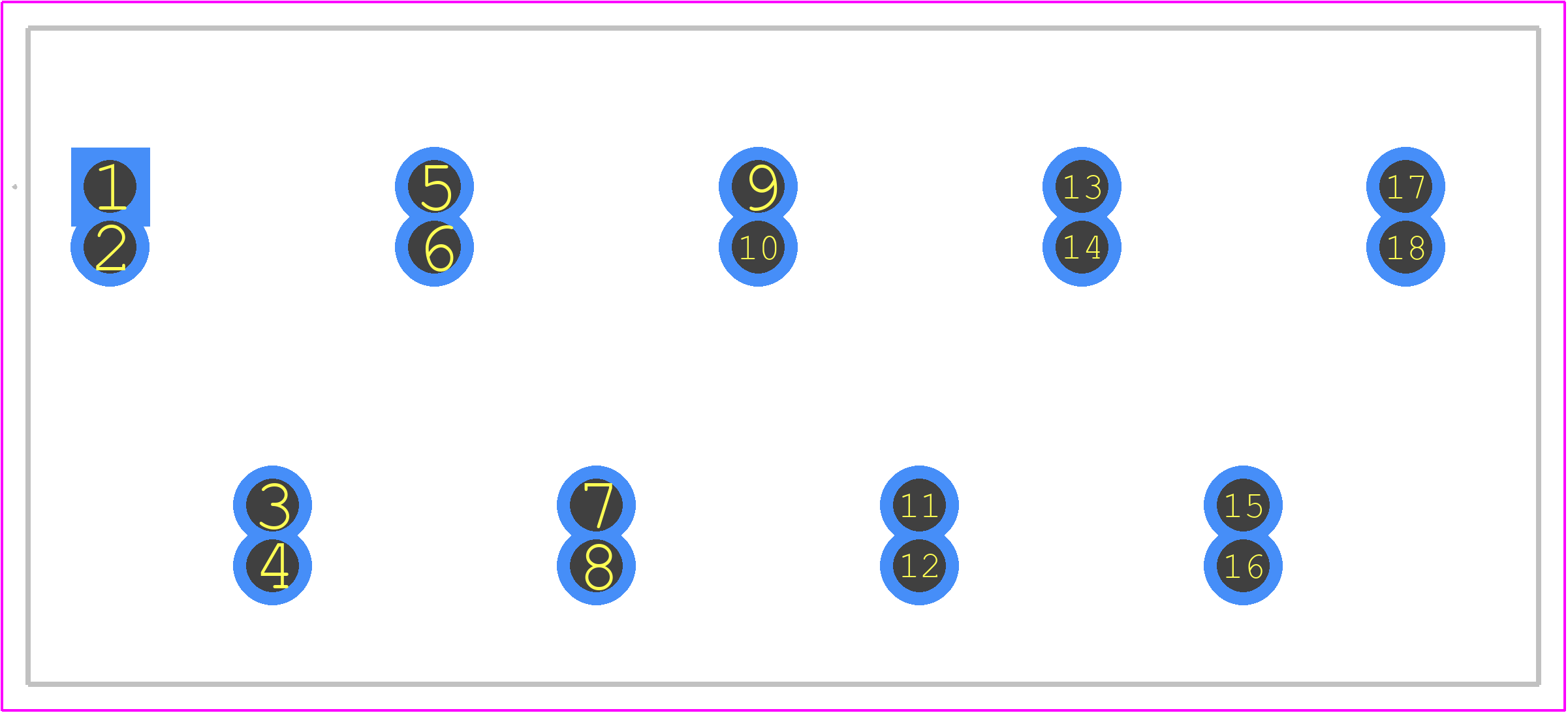

1980666 - Phoenix Contact PCB footprint - Other - Other - 1980666
click to zoom
3D Models
1980666 - Phoenix Contact - 3D model - Other - 1980666
click to zoom

1980666 Details

  • Manufacturer Part Number:

    1980666

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Ways:

    9

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1980666 Overview

Use the download button to access the 1980666 schematic symbol, PCB footprint, and 3D model.
