1989926 - Phoenix Contact

Description: PTSA 0,5/20-2,5-F - Printed circuit board terminal, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 20, number of rows: 1, number of positions per row: 20, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, number of solder pins per potential: 1, type of packaging: packed i

Download 1989926 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1989926 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

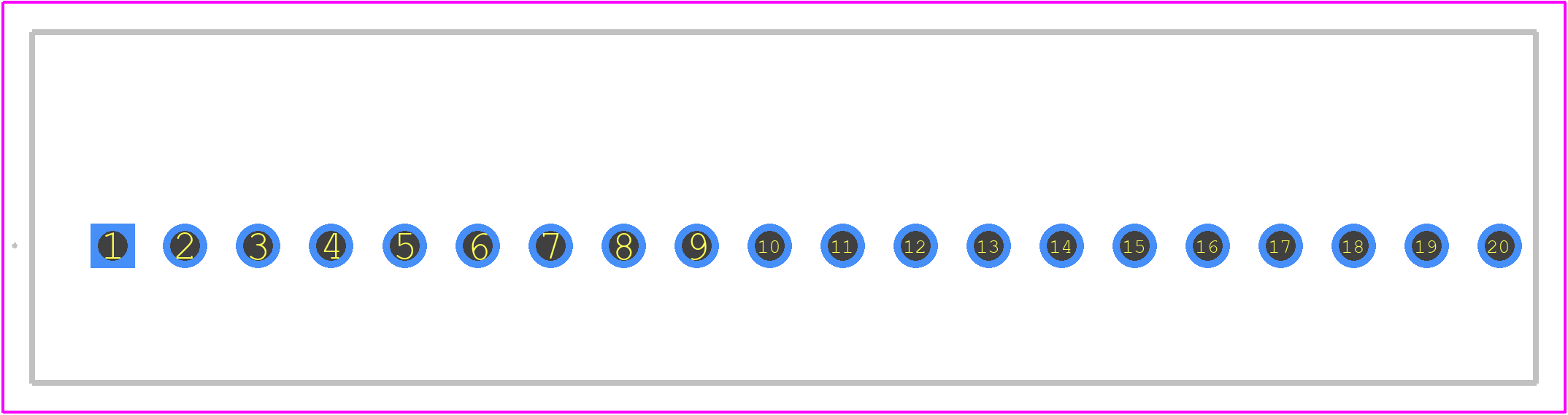

1989926 - Phoenix Contact PCB footprint - Other - Other - 1989926-1
click to zoom
3D Models
1989926 - Phoenix Contact - 3D model - Other - 1989926-1
click to zoom

1989926 Details

  • Manufacturer Part Number:

    1989926

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    2 A

  • Rated Voltage:

    63 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1989926 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1989926 is -40°C to 125°C.
  • Yes, the 1989926 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1989926 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1989926 is 2.5 mm² (AWG 14).
  • Yes, the 1989926 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
