1990753 - Phoenix Contact

Description: SPT 1,5/ 4-H-3,5 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: SPT 1,5/..-H, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packe

Download 1990753 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1990753 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

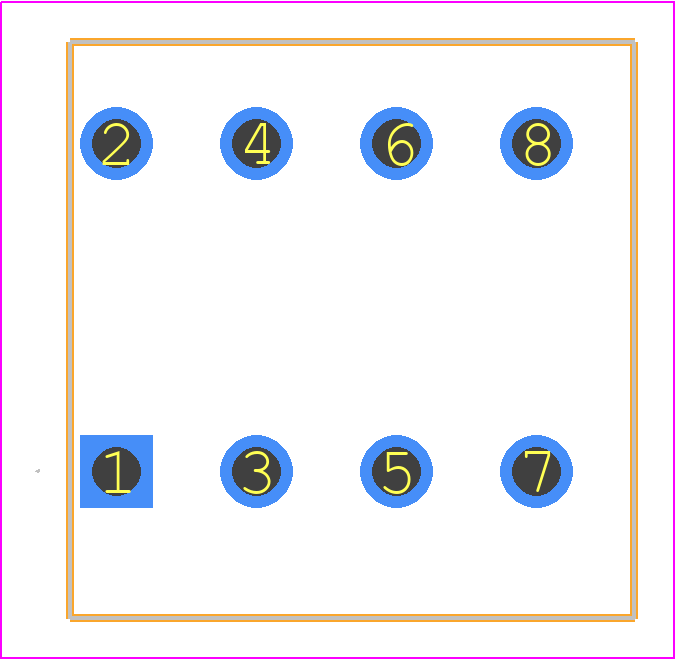

1990753 - Phoenix Contact PCB footprint - Other - Other - 1990753
click to zoom
3D Models
1990753 - Phoenix Contact - 3D model - Other - 1990753
click to zoom

1990753 Details

  • Manufacturer Part Number:

    1990753

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    17.5 A

  • Rated Voltage:

    200 V

  • Safety Approval:

    CB; CCA; CUL; EAC; SEV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1990753 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or connector.
  • Yes, the 1990753 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain reliability in high-vibration environments.
  • The 1990753 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humid environments. However, it's essential to consult the specific application requirements and ensure proper sealing and protection to maintain reliability.
  • Yes, the 1990753 connector is designed to be compatible with other Phoenix Contact products and accessories, such as PCB terminals, connectors, and cable assemblies. Consult the Phoenix Contact catalog or website for compatible products and configurations.
  • The maximum current rating for the 1990753 connector is 12 A per contact. However, it's essential to consult the specific application requirements and ensure proper wire sizing and insulation to maintain reliability and safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1990753 Overview

Use the download button to access the 1990753 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19907, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
