1991147 - Phoenix Contact

Description: SPT 2,5/ 7-V-5,0 - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: SPT 2,5/..-V, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed i

Download 1991147 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

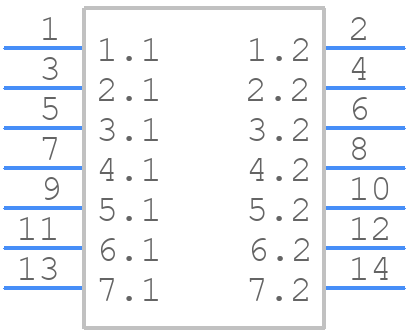

1991147 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

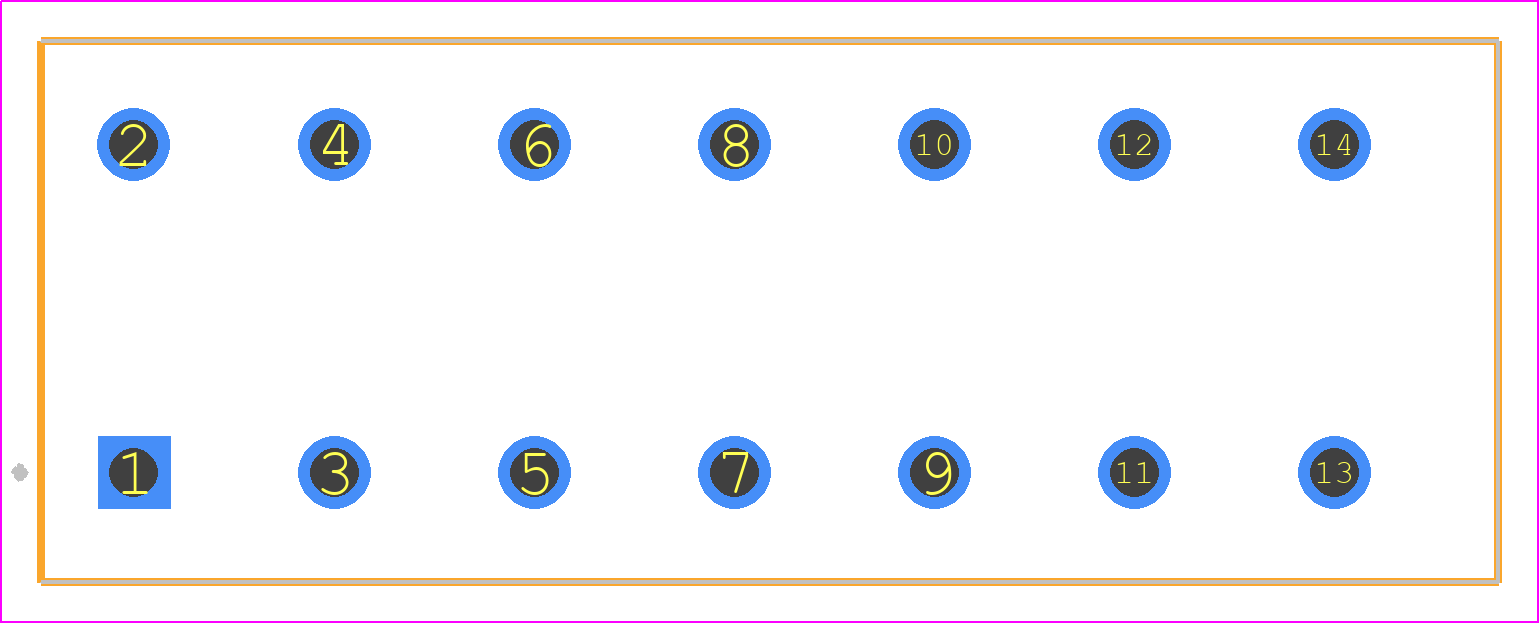

1991147 - Phoenix Contact PCB footprint - Other - Other - 1991147
click to zoom
3D Models
1991147 - Phoenix Contact - 3D model - Other - 1991147
click to zoom

1991147 Details

  • Manufacturer Part Number:

    1991147

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.89

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    24 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

1991147 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure a secure connection.
  • Yes, the 1991147 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the 1991147 connector has a IP67 rating, making it suitable for outdoor use and harsh environments, including exposure to dust and water.
  • While it's technically possible, it's not recommended to use a wire gauge that's not specified in the datasheet. Using a different gauge may affect the connector's performance, reliability, and safety.
  • To ensure a secure connection, strip the wire to the recommended length, twist the strands together, and insert the wire into the connector. Then, tighten the screw to the recommended torque.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1991147 Overview

Use the download button to access the 1991147 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19911, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
