Part Image

1996333 - Phoenix Contact

Description: PC 6-16/ 4-G1FU-10,16 - PCB headers, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PC 6-16/..-G1FU, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: CO

Download 1996333 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

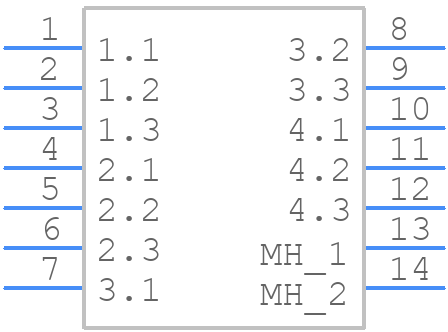

Symbol
1996333 - Phoenix Contact - PCB symbol
click to zoom

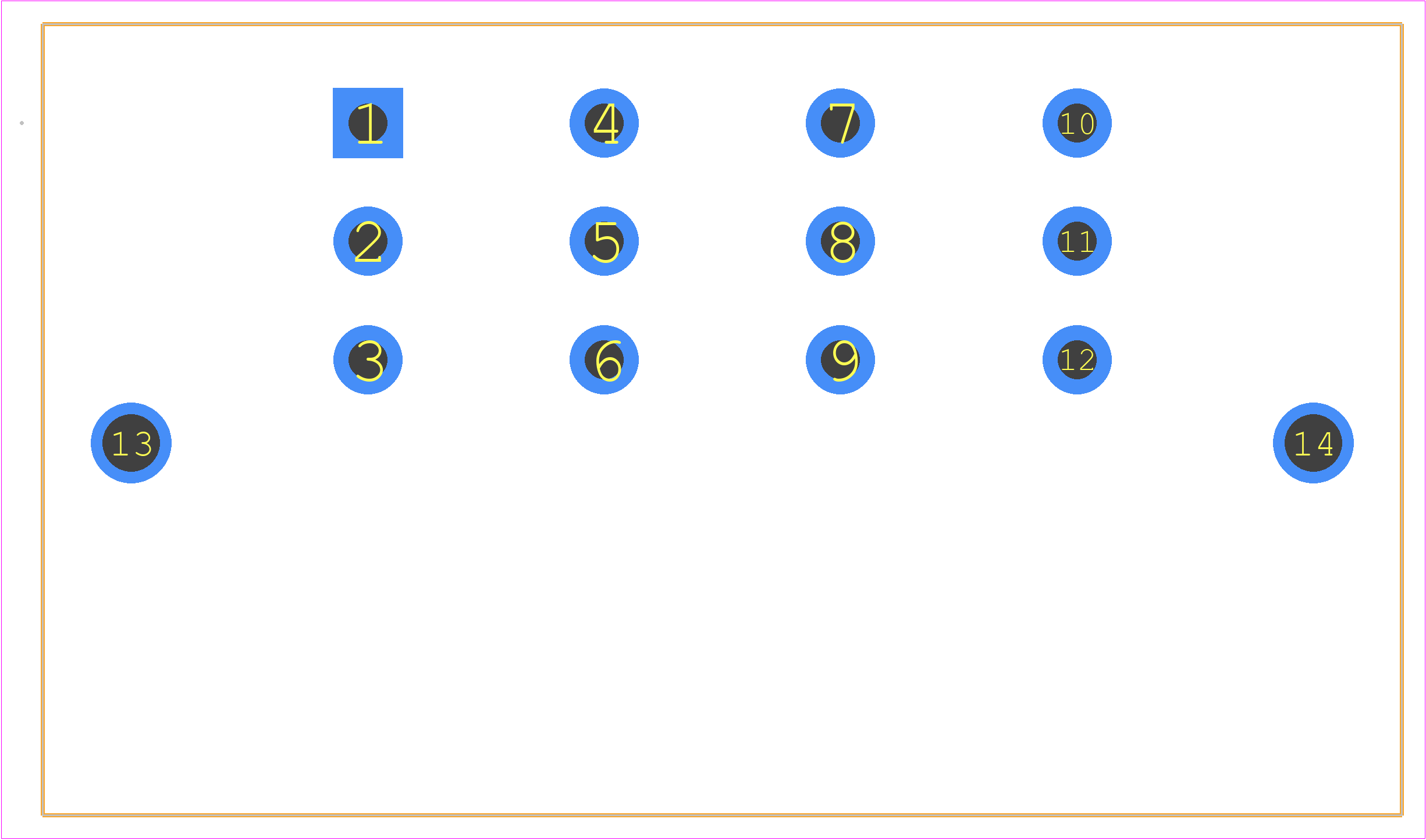

PCB Footprints
1996333 - Phoenix Contact PCB footprint - Other - Other - 1996333
click to zoom
3D Models
1996333 - Phoenix Contact - 3D model - Other - 1996333
click to zoom

1996333 Details

  • Manufacturer Part Number:

    1996333

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CUL;EAC;UL;VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1996333 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1996333 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1996333 has a housing made of polyamide PA 6.6, which is resistant to many chemicals and cleaning agents, including oils, fuels, and detergents. However, it's recommended to check the compatibility of specific substances with the connector material.
  • The 1996333 has a protection rating of IP20, which means it's not suitable for outdoor or humid environments. For outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • The 1996333 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1996333 Overview

Use the download button to access the 1996333 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19963, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
