1999000 - Phoenix Contact

Description: PC 6-16/ 2-G1F-10,16 - PCB headers, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PC 6-16/..-G1F, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMB

Download 1999000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1999000 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

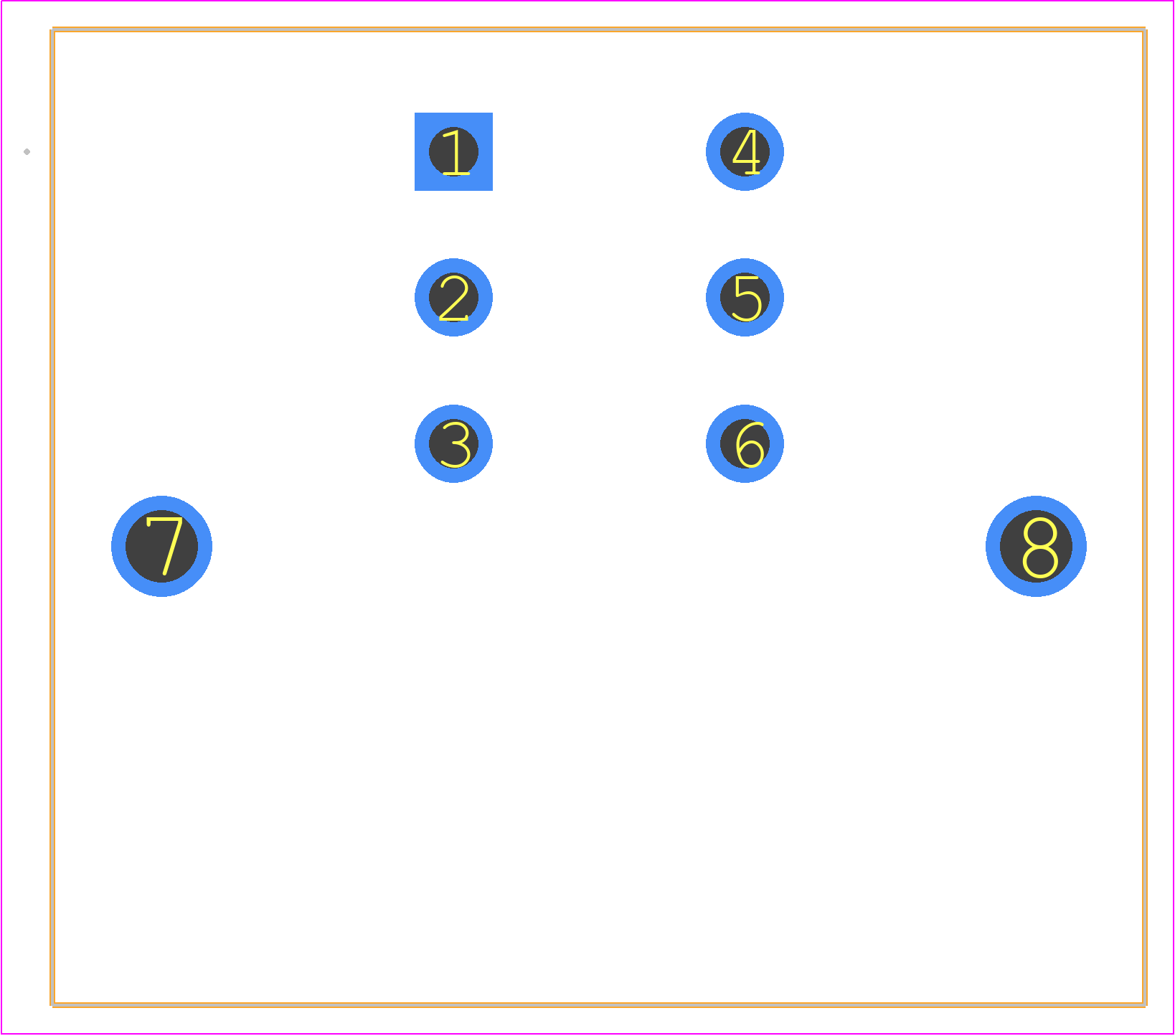

1999000 - Phoenix Contact PCB footprint - Other - Other - 1999000
click to zoom
3D Models
1999000 - Phoenix Contact - 3D model - Other - 1999000
click to zoom

1999000 Details

  • Manufacturer Part Number:

    1999000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1999000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1999000 is designed to withstand vibrations up to 10 g according to IEC 61373, making it suitable for use in high-vibration environments.
  • Yes, the 1999000 is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • Yes, the 1999000 is suitable for use with aluminum wires, but it's recommended to use a wire with a copper or tin coating to ensure good conductivity.
  • The maximum operating temperature of the 1999000 is 125°C, making it suitable for use in high-temperature applications.
