1999026 - Phoenix Contact

Description: PC 6-16/ 4-G1F-10,16 - PCB headers, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PC 6-16/..-G1F, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMB

Download 1999026 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

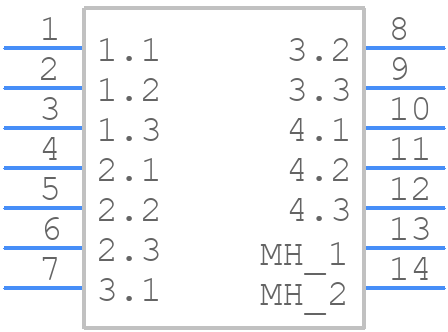

1999026 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

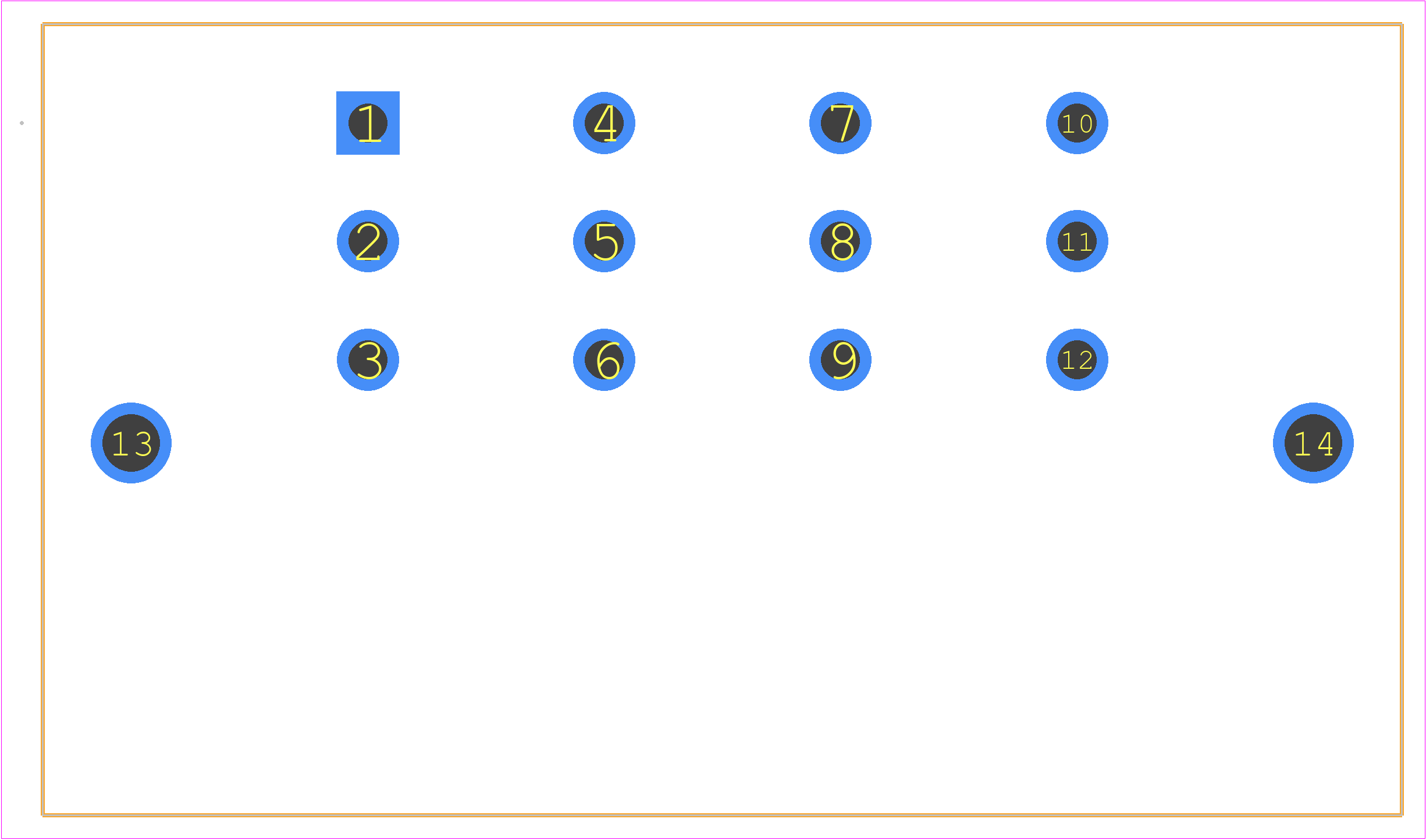

1999026 - Phoenix Contact PCB footprint - Other - Other - 1999026
click to zoom
3D Models
1999026 - Phoenix Contact - 3D model - Other - 1999026
click to zoom

1999026 Details

  • Manufacturer Part Number:

    1999026

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CUL; EAC; SEV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1999026 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper fastening.
  • While the 1999026 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional locking mechanisms or specialized vibration-resistant designs.
  • The 1999026 is designed for indoor use. For outdoor or harsh environmental applications, consider using connectors with IP67 or higher ratings, and ensure the connector is properly sealed and protected.
  • The 1999026 is rated for 12 A per contact. For higher current applications, consider using connectors with heavier gauge contacts or specialized high-current designs.
  • Yes, ensure the PCB layout provides sufficient clearance around the connector, and consider using a ground plane to reduce electromagnetic interference (EMI). Consult the Phoenix Contact application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1999026 Overview

Use the download button to access the 1999026 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19990, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
