19R104C footprint, schematic symbol and 3D model by Murata Electronics

Symbol

click to zoom

PCB Footprints

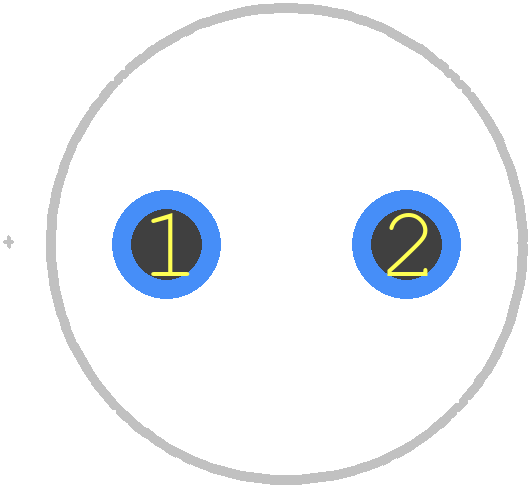

19R104C - Murata Electronics PCB footprint - Other - Other - 1900 Series

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 19R104C
Part Number 19R104C
Manufacturer Murata Electronics
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - 1900 Series
Released Date Aug 10, 2017
Last Modified Date Jan 3, 2025 3:41 PM UTC
Pinout / Pin List Click Here (Member Only)

19R104C Details

Manufacturer Part Number:
19R104C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
11 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Construction:
Cylindrical
DC Resistance:
0.09 Ω
Inductance-Nom (L):
100 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e3
Lead Diameter:
0.8 mm
Lead Spacing:
6 mm
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
95 °C
Operating Temperature-Min:
-40 °C
Package Height:
23 mm
Package Length:
12 mm
Package Style:
Radial
Package Width:
12 mm
Packing Method:
Bulk
Rated Current-Max:
2.2 A
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Test Frequency:
0.001 MHz
Tolerance:
10%

19R104C Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, with a spacing of 0.5mm between pads. The land pattern should be designed to minimize thermal resistance and ensure good solderability.
The 19R104C is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). The capacitor's internal construction and materials are optimized to minimize high-frequency losses and ensure effective noise filtering.
The 19R104C has a rated operating temperature range of -55°C to +125°C, making it suitable for high-temperature applications. However, the capacitor's performance may degrade at extreme temperatures, and derating may be necessary to ensure reliable operation.
The 19R104C is designed to withstand moderate vibration levels, but it's essential to ensure that the capacitor is properly mounted and secured to prevent mechanical stress. Murata recommends following the recommended mounting and soldering guidelines to ensure reliable operation in high-vibration environments.
Yes, the 19R104C is compatible with lead-free soldering processes. Murata uses lead-free terminations and materials that meet the requirements of the RoHS directive and other environmental regulations.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

19R104C Overview

Use the download button to access the 19R104C schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 19R10, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
