- Part Number 1EDB8275FXUMA1
- Manufacturer Infineon
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-DSO-8 outline
- Released Date Oct 24, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1EDB8275FXUMA1 Details
-
Manufacturer Part Number:
1EDB8275FXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany, Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
-
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
-
Moisture Sensitivity Level:
3
1EDB8275FXUMA1 Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
To ensure EMC, follow the guidelines in the Infineon application note AN2019-02, which provides recommendations for PCB design, component selection, and shielding to minimize electromagnetic interference.
-
The 1EDB8275FXUMA1 has a maximum junction temperature of 150°C. Ensure proper thermal management by using a heat sink, thermal interface material, and following the thermal design guidelines in the datasheet and application notes.
-
Yes, the 1EDB8275FXUMA1 is designed for high-reliability and safety-critical applications. It meets the requirements of various industry standards, such as AEC-Q100 and IEC 61508. Consult the datasheet and application notes for specific details.
-
Consult the troubleshooting guide in the application note AN2019-03, which provides a step-by-step approach to identifying and resolving common issues with the 1EDB8275FXUMA1.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1EDB8275FXUMA1 Overview

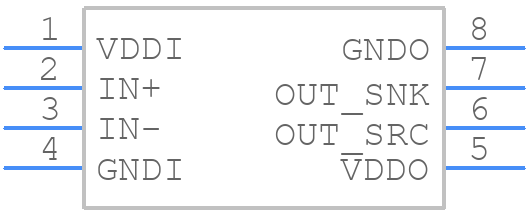

Use the download button to access the 1EDB8275FXUMA1 schematic symbol, PCB footprint, and 3D model.
