1EDI60I12AF - Infineon

Description: Gate Drivers DRIVER IC

Download 1EDI60I12AF Model

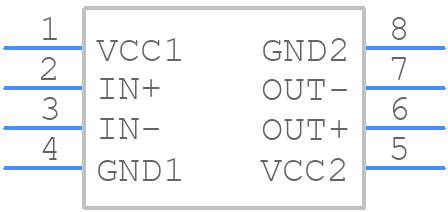

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1EDI60I12AF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - DSO-8
click to zoom
3D Models
1EDI60I12AF - Infineon  - 3D model - Small Outline Packages - DSO-8
click to zoom

1EDI60I12AF Details

  • Manufacturer Part Number:

    1EDI60I12AF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Additional Feature:

    ALSO HAS SINK O/P CURRENT OF 9.4A

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    PUSH-PULL BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.33 µs

  • Turn-on Time:

    0.33 µs

  • Width:

    3.9 mm

1EDI60I12AF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 1EDI60I12AF is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to implement adequate cooling mechanisms to prevent overheating.
  • The recommended PCB layout and thermal design for the 1EDI60I12AF can be found in the Infineon application note AN2013-01, which provides detailed guidelines for optimal thermal performance.
  • Yes, the 1EDI60I12AF is designed to operate up to 1200V, making it suitable for high-voltage applications. However, it's essential to ensure that the device is properly configured and protected to prevent overvoltage and overcurrent conditions.
  • To protect the 1EDI60I12AF from ESD, it's essential to follow proper handling and storage procedures, and to implement ESD protection measures such as using ESD-safe materials, grounding straps, and ionizers.
