1N4743A-TAP - Vishay

Description: Zener Diodes 13 Volt 1.3 Watt

Download 1N4743A-TAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1N4743A-TAP - Vishay - PCB symbol
click to zoom
PCB Footprints

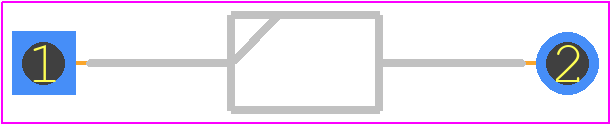

1N4743A-TAP - Vishay PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - 1N4734A-TAP-1
click to zoom
3D Models
1N4743A-TAP - Vishay - 3D model - Diodes, Axial Diameter Horizontal Mounting - 1N4734A-TAP-1
click to zoom

1N4743A-TAP Details

  • Manufacturer Part Number:

    1N4743A-TAP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • JEDEC-95 Code:

    DO-41

  • JESD-30 Code:

    O-XALF-W2

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    1.3 W

  • Qualification Status:

    Not Qualified

  • Reference Voltage-Nom:

    13 V

  • Surface Mount:

    NO

  • Technology:

    ZENER

  • Terminal Finish:

    Tin/Silver (Sn96.5Ag3.5)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tol-Max:

    5%

  • Working Test Current:

    19 mA

1N4743A-TAP Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1N4743A-TAP can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface mount assembly of diodes.
  • To prevent thermal shock, it is recommended to follow the soldering profile recommended by Vishay Intertechnologies, which includes a maximum temperature of 260°C for 10 seconds. Additionally, the component should be soldered in a way that minimizes thermal gradients.
  • The maximum allowable voltage derating for the 1N4743A-TAP is typically 80% of the rated voltage, but this may vary depending on the specific application and operating conditions. It is recommended to consult with a Vishay Intertechnologies' application engineer for specific guidance.
  • The 1N4743A-TAP is a standard recovery diode and is not optimized for high-frequency applications. For high-frequency applications, Vishay Intertechnologies offers other diode products that are specifically designed for high-frequency switching, such as the VS-1N4743A-HF.
  • The 1N4743A-TAP has a moisture sensitivity level (MSL) of 1, which means it can be exposed to a maximum of 30°C/60% relative humidity for 168 hours without being baked prior to soldering.
