Intel provides a reference design guide for the 1SG085HN2F43E2VG, which includes recommendations for PCB layout, thermal design, and heat sink selection. It's essential to follow these guidelines to ensure optimal performance and prevent overheating.
The 1SG085HN2F43E2VG requires a specific power sequencing and voltage regulation scheme. Intel recommends using a dedicated power management IC (PMIC) or a custom power supply design that meets the device's power requirements. Consult Intel's application notes and design guides for more information.
The 1SG085HN2F43E2VG has specific operating conditions, such as temperature, voltage, and current limits. Ensure reliable operation by following Intel's recommended operating conditions, and implement proper thermal management, voltage regulation, and current limiting measures.
Intel provides debugging tools and guidelines for troubleshooting the 1SG085HN2F43E2VG. Common failure modes include overheating, power supply issues, and signal integrity problems. Use Intel's debugging resources, such as the Intel FPGA Debug Toolkit, to identify and resolve issues.
The 1SG085HN2F43E2VG has built-in security features, such as secure boot and firmware update mechanisms. Implement secure boot by following Intel's guidelines, and use secure firmware update protocols to ensure the integrity of the device's firmware.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1SG085HN2F43E2VGS Overview

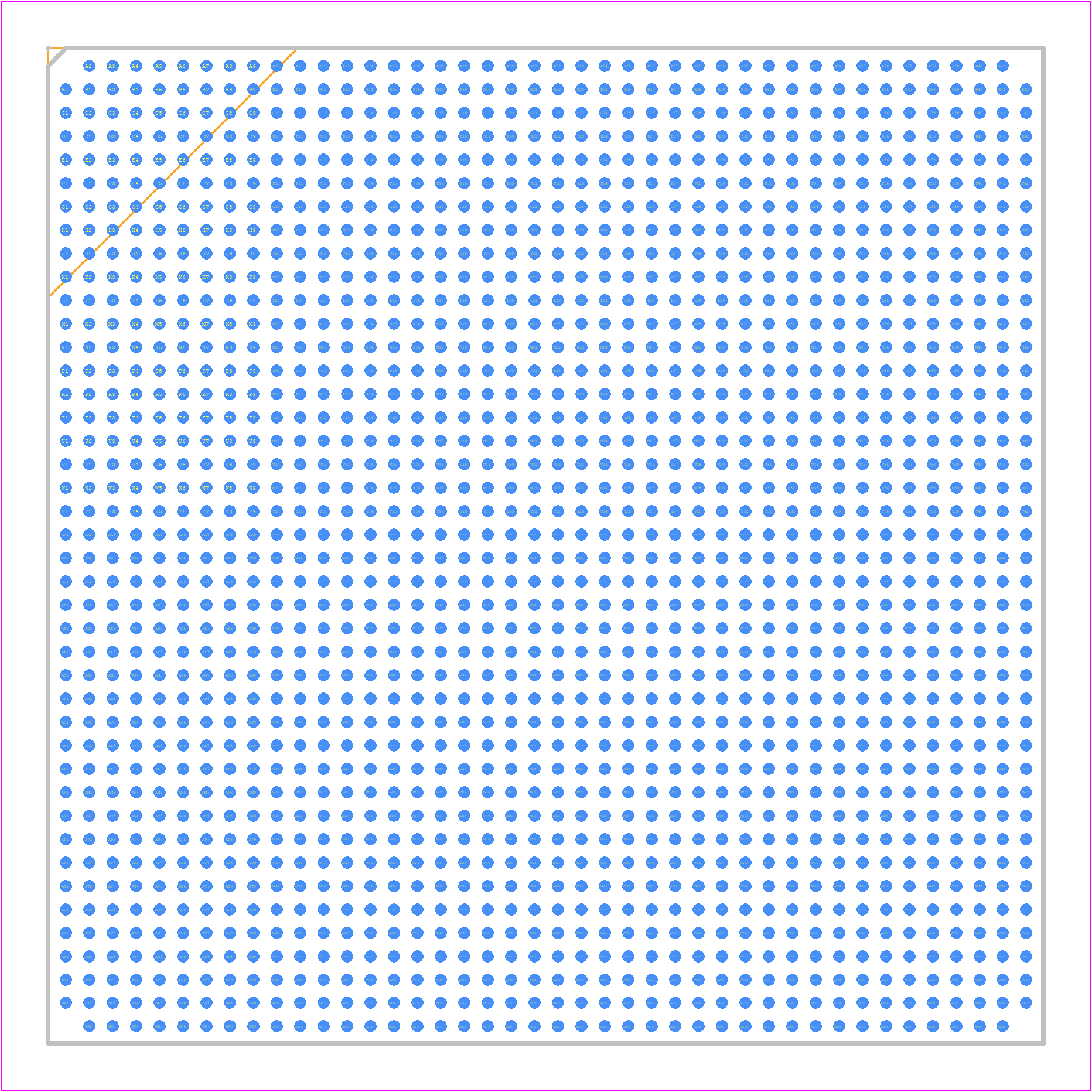

Use the download button to access the 1SG085HN2F43E2VGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1SG08,
or try a keyword search, such as Field Programmable Gate Arrays
Suggested Parts
If you searched for 1SG085HN2F43E2VGS, you might also be interested in these parts:
