1SG280LU2F50E2VG - Intel

Description: FPGA - Field Programmable Gate Array

Download 1SG280LU2F50E2VG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

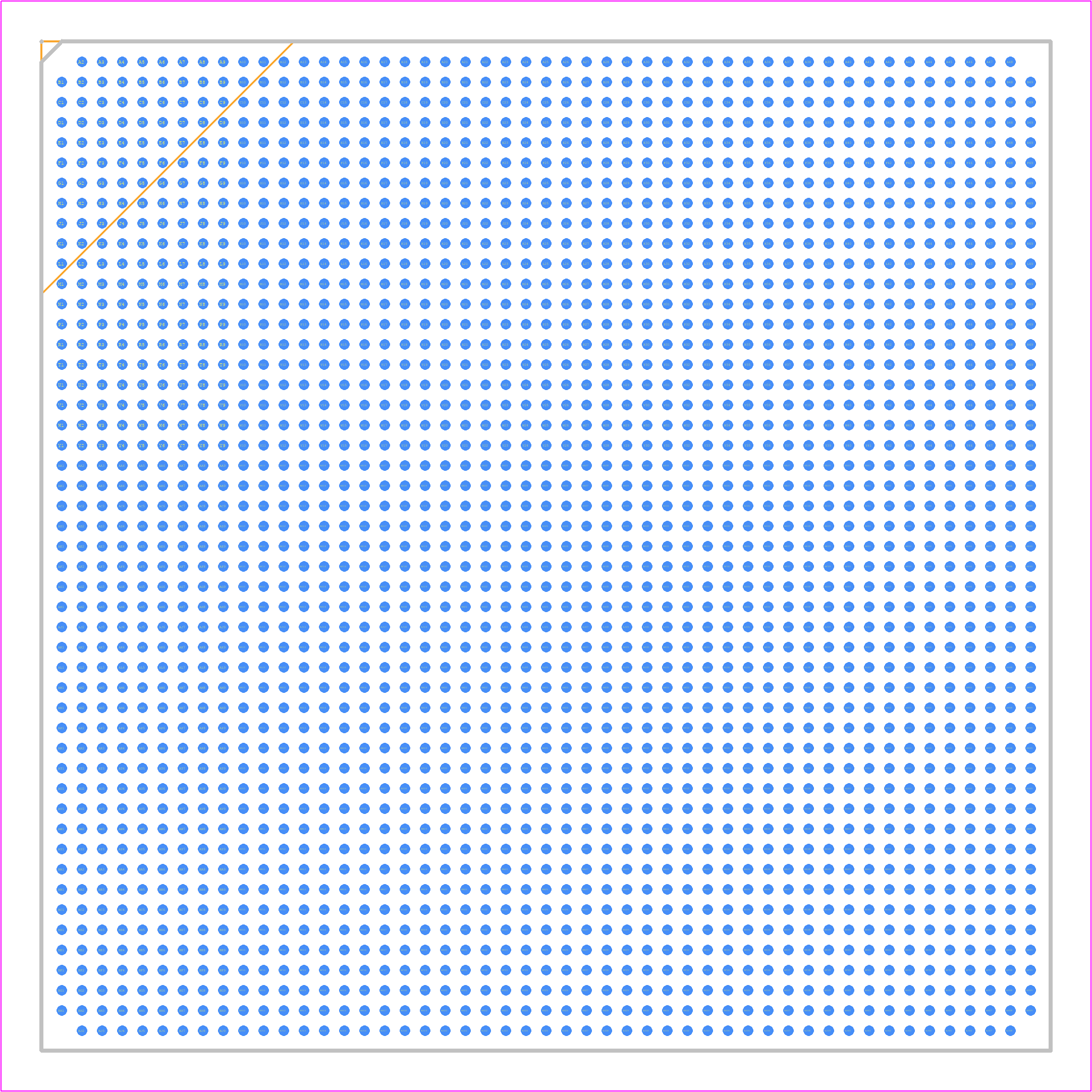

1SG280LU2F50E2VG - Intel PCB footprint - BGA - BGA - 2397-pin FBGA - Flip Chip - Step Top
click to zoom
3D Models
1SG280LU2F50E2VG - Intel  - 3D model - BGA - 2397-pin FBGA - Flip Chip - Step Top
click to zoom

1SG280LU2F50E2VG Details

  • Manufacturer Part Number:

    1SG280LU2F50E2VG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    FBGA-2397

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-08

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B2397

  • Length:

    50 mm

  • Number of CLBs:

    344125

  • Number of Inputs:

    736

  • Number of Logic Cells:

    2753000

  • Number of Outputs:

    736

  • Number of Terminals:

    2397

  • Operating Temperature-Max:

    100 °C

  • Organization:

    344125 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA2397,49X49,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    3.881 mm

  • Supply Voltage-Max:

    0.97 V

  • Supply Voltage-Min:

    0.77 V

  • Supply Voltage-Nom:

    0.8 V

  • Surface Mount:

    YES

  • Technology:

    14 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    50 mm
