1SX280LU3F50E3VGS1 - Intel

1SX280LU3F50E3VGS1 Details

• Manufacturer Part Number:

  1SX280LU3F50E3VGS1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

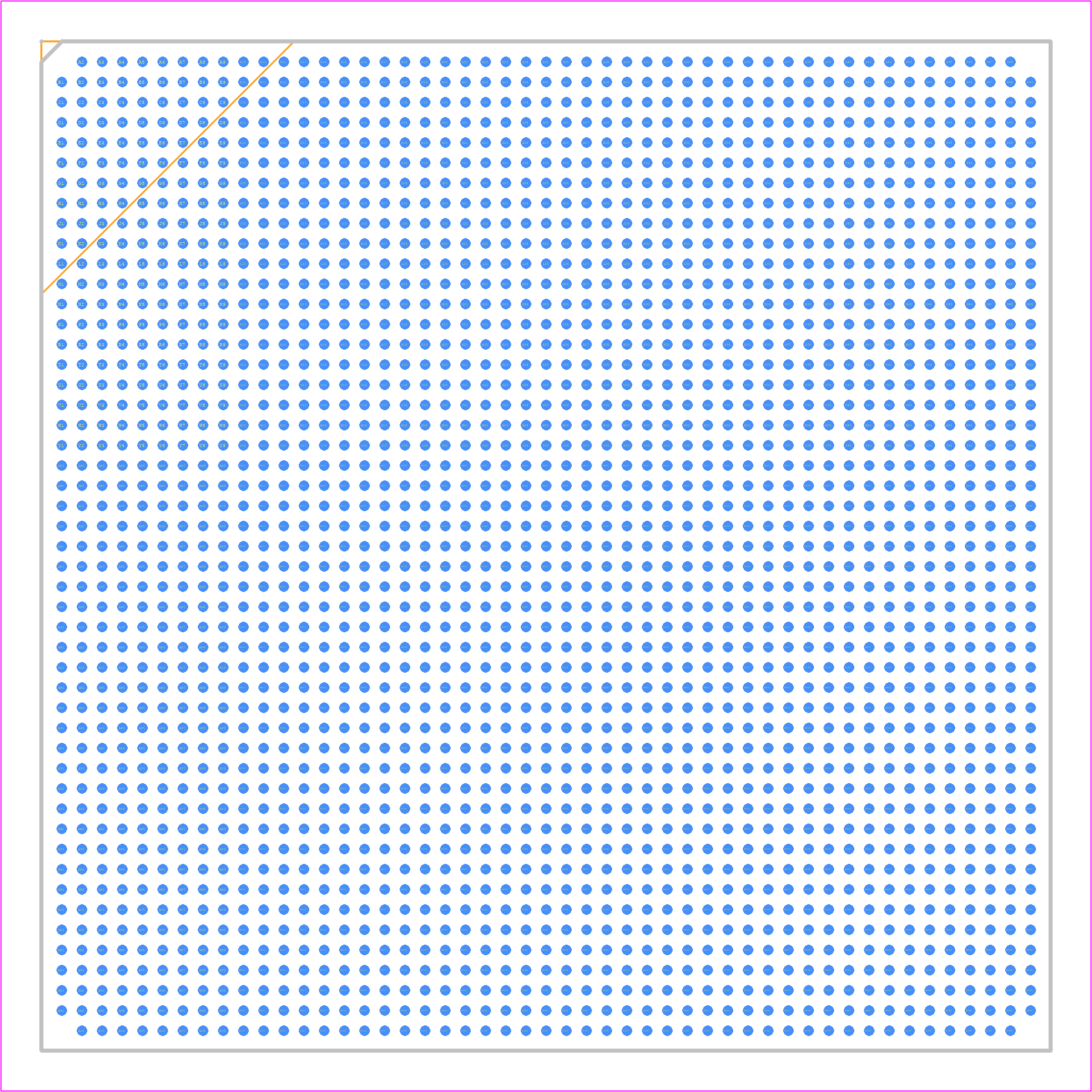

• Package Description:

  FBGA-2397

• HTS Code:

  8542.31.00.60

• Date Of Intro:

  2018-08-08

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• JESD-30 Code:

  S-PBGA-B2397

• Length:

  50 mm

• Number of CLBs:

  344125

• Number of Inputs:

  736

• Number of Logic Cells:

  2753000

• Number of Outputs:

  736

• Number of Terminals:

  2397

• Operating Temperature-Max:

  100 °C

• Organization:

  344125 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA2397,49X49,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FPGA SOC

• Seated Height-Max:

  3.881 mm

• Supply Voltage-Max:

  0.97 V

• Supply Voltage-Min:

  0.77 V

• Supply Voltage-Nom:

  0.8 V

• Surface Mount:

  YES

• Technology:

  FinFET, 14 nm

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  50 mm
