2-1969543-2 - TE Connectivity

Description: TE Connectivity EP Series, Series Number 2-1969543, 2.5mm Pitch 22 Way 2 Row Straight PCB Header, Solder Termination

Download 2-1969543-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

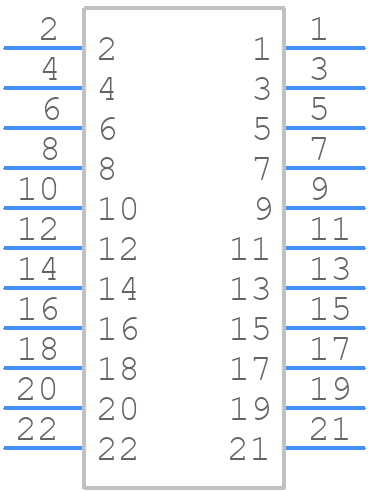

2-1969543-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

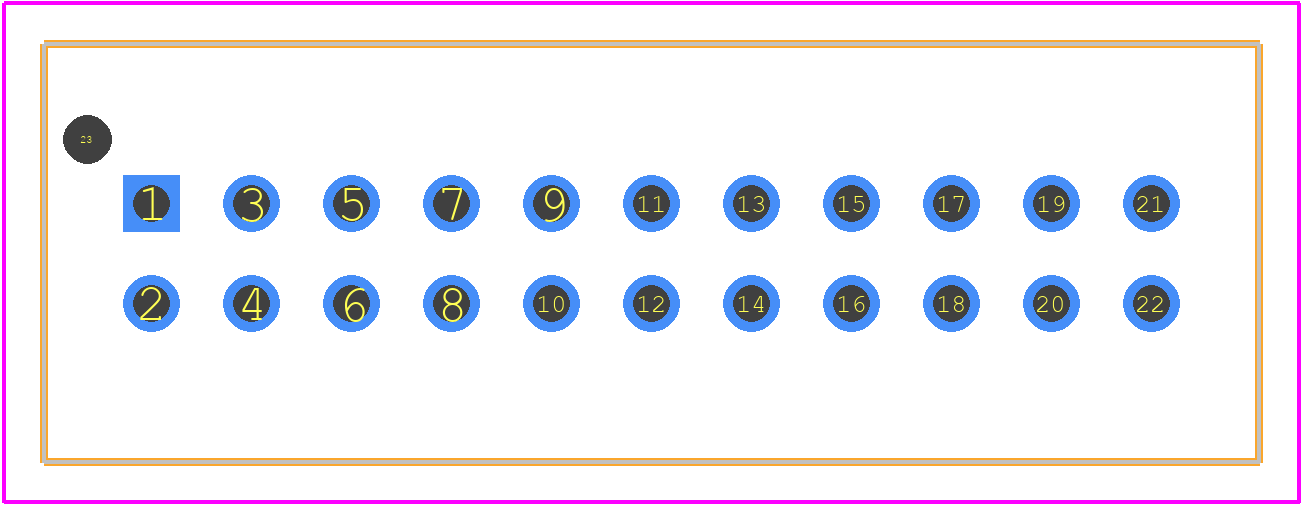

2-1969543-2 - TE Connectivity PCB footprint - Other - Other - 2-1969543-2-2
click to zoom
3D Models
2-1969543-2 - TE Connectivity - 3D model - Other - 2-1969543-2-2
click to zoom

2-1969543-2 Details

  • Manufacturer Part Number:

    2-1969543-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.412 inch

  • Body Depth:

    0.386 inch

  • Body Length:

    1.197 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.098 inch

  • Mating Contact Row Spacing:

    0.098 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.5 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    22

  • UL Flammability Code:

    94V-0
