Part Image

2-2232043-4 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Rows 1 | Number of Columns 4 | Number of Positions 4 | Keying & Polarized Position Locations 4D | PCB Mount Orientation Vertical | Contact Features: Mating Tab Thickness .8 MM | Contact Current Rating (Max) 16 AMP | Contact Underplating Material Thickness 1.27 MICM | Contact Underplating Material Thickness 50 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Length 8.5 MM | PCB Contact Termination

Download 2-2232043-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-2232043-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

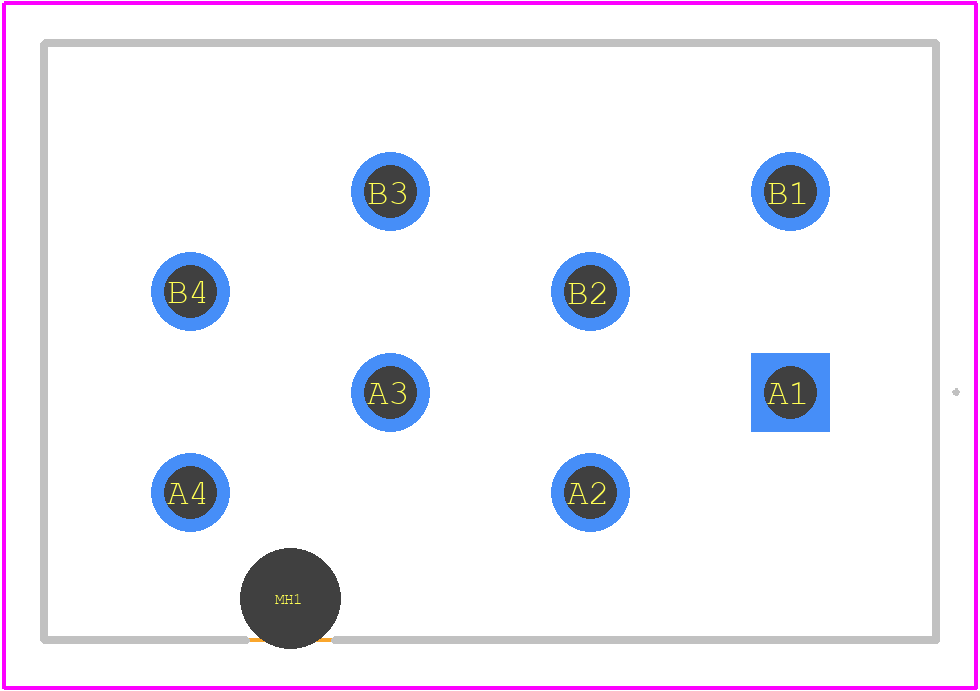

2-2232043-4 - TE Connectivity PCB footprint - Other - Other - 2-2232043-4-3
click to zoom
3D Models
2-2232043-4 - TE Connectivity - 3D model - Other - 2-2232043-4-3
click to zoom

2-2232043-4 Details

  • Manufacturer Part Number:

    2-2232043-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT (POWER): 16A

  • Body Breadth:

    0.58 inch

  • Body Depth:

    0.503 inch

  • Body Length:

    0.88 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL, VDE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

2-2232043-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the 2-2232043-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
  • Yes, the 2-2232043-4 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 2-2232043-4 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C (-40°F to 221°F) and meeting IP67 ingress protection standards.
  • The 2-2232043-4 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 2-2232043-4 connector is designed for automated assembly, with a pick-and-place compatible design and tape-and-reel packaging available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-2232043-4 Overview

Use the download button to access the 2-2232043-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-223, or try a keyword search, such as Power Connectors
