2-2301994-0 - TE Connectivity

Description: Body Features: Modular Jack Latch Orientation Inverted - Latch Up | PCB Ground Tab Location 3.05 MM | LED Color (Top Left) None | Shield Plating Material Nickel | Connector Profile Standard | Insulator Material LCP | Shield Material Brass | Shield Plating Finish Matte | LED Color (Top Right) None | PCB Retention Feature Material LCP | LED Color (Bottom Left) None | LED Color (Bottom Right) None | PCB Ground Tab Location .12 INCH | Configuration Features: PCB Mount Orientation Right Angle | Connector Contact

Download 2-2301994-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-2301994-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

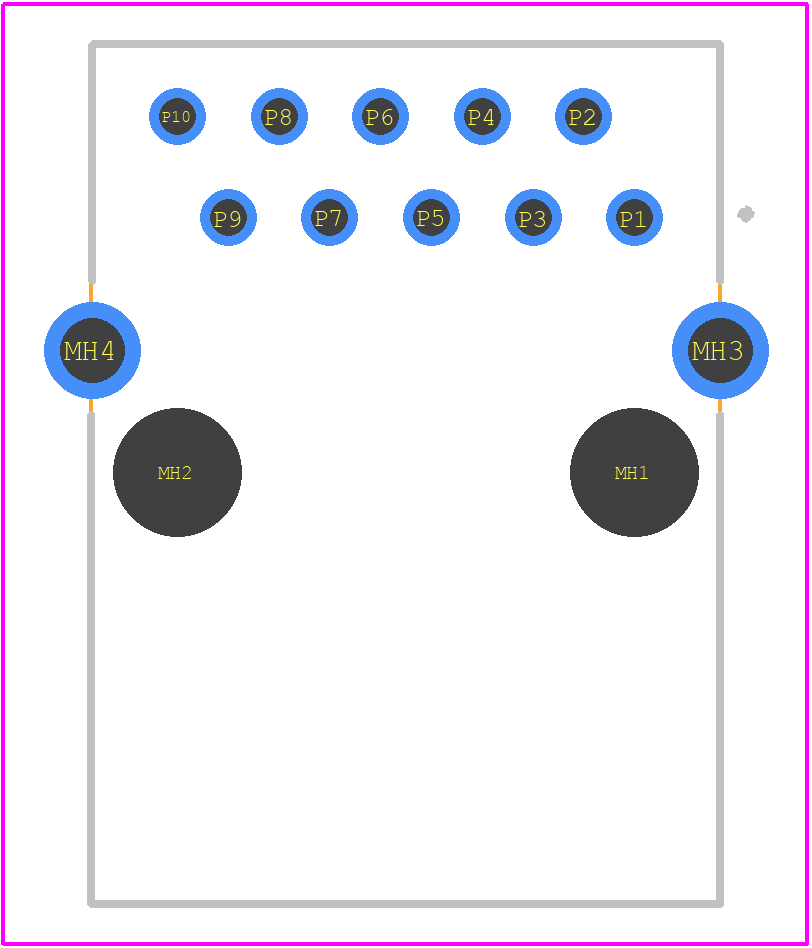

2-2301994-0 - TE Connectivity PCB footprint - Other - Other - 2-2301994-0-1
click to zoom
3D Models
2-2301994-0 - TE Connectivity - 3D model - Other - 2-2301994-0-1
click to zoom

2-2301994-0 Details

  • Manufacturer Part Number:

    2-2301994-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.453 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2-2301994-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of the 2-2301994-0 connector is typically between 0.5-1.5 Nm (0.37-1.06 lb-in). However, it's recommended to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • While the 2-2301994-0 connector is designed to be robust, its suitability for high-vibration applications depends on the specific requirements. TE Connectivity recommends consulting their vibration testing data and performing additional testing to ensure the connector meets the specific application's requirements.
  • The 2-2301994-0 connector is designed to operate in a temperature range of -40°C to 105°C (-40°F to 221°F). However, for harsh environments, it's recommended to consult TE Connectivity's environmental testing data and consider additional sealing or protective measures to ensure the connector's reliability.
  • The 2-2301994-0 connector is designed to accommodate wire sizes between AWG 24 and AWG 16. However, the maximum wire size may vary depending on the specific application and wire insulation. It's recommended to consult TE Connectivity's wire size charts and application notes for guidance.
  • Yes, the 2-2301994-0 connector made by TE Connectivity is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability and safety.
