2-530689-6 - TE Connectivity

Description: Body Features: Primary Product Color Green | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 22 | Number of Dual Positions 22 | Connector Contact Load Condition Fully Loaded | Contact Features: Contact Type Socket | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | PCB Contact Termination Area Plating Material Thickness 100 MICIN | Contact Mating Area Plating Material Thickness .76 MICM | Contact Base Material Phosphor Bronze | Contact Retent

Download 2-530689-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

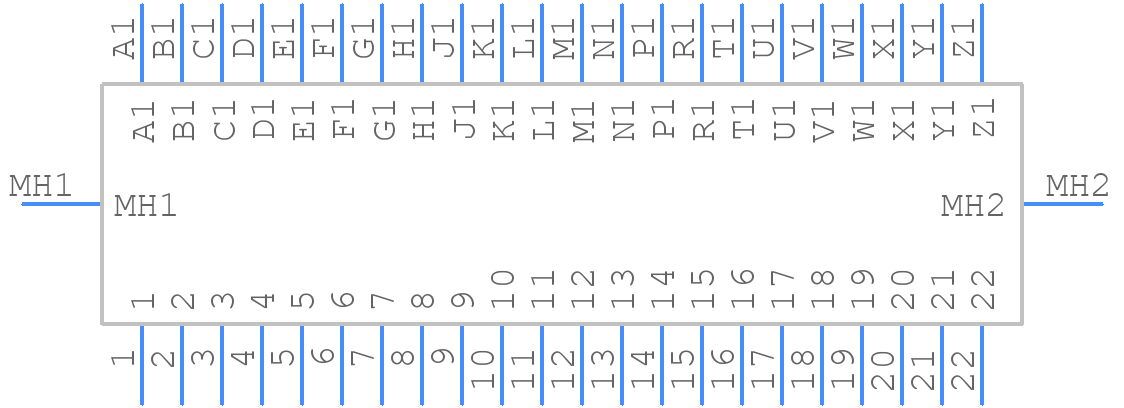

2-530689-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

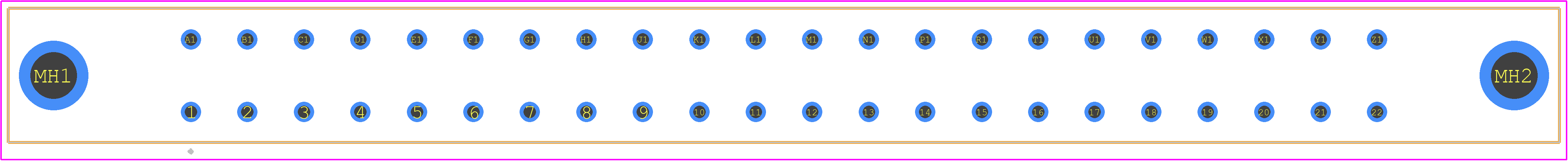

2-530689-6 - TE Connectivity PCB footprint - Other - Other - 2-530689-6-2
click to zoom
3D Models
2-530689-6 - TE Connectivity - 3D model - Other - 2-530689-6-2
click to zoom

2-530689-6 Details

  • Manufacturer Part Number:

    2-530689-6

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    38 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    0.46 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    GREEN

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Row Spacing:

    0.2 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    5 A

  • Terminal Length:

    0.15 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    22

  • UL Flammability Code:

    94V-0

2-530689-6 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-530689-6 connector is designed to withstand high-vibration environments. It has a ruggedized design and meets the requirements of IEC 61373 Cat 2, which ensures reliable performance in applications with high vibration and shock.
  • The 2-530689-6 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure reliable performance.
  • The 2-530689-6 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 2-530689-6 connector is part of the TE Connectivity AMPSEAL 16 connector family and is compatible with other products in this family. It's essential to verify compatibility with specific products and applications to ensure reliable performance.
