Part Image

2-5499141-8 - TE Connectivity

Description: Body Features: Primary Product Color Blue | Connector Profile Standard | Configuration Features: Number of Positions 34 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Type Pin | Contact Shape & Form Square | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Current Rating (Max) 1 AMP | Contact Mating Area Plating Material Gold | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Thickness .76 MICM | PCB Contact Termination Area Pl

Download 2-5499141-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

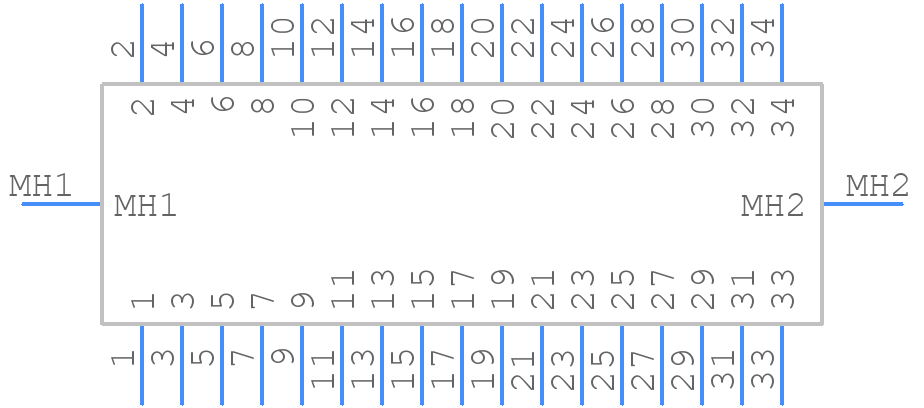

Symbol
2-5499141-8 - TE Connectivity - PCB symbol
click to zoom

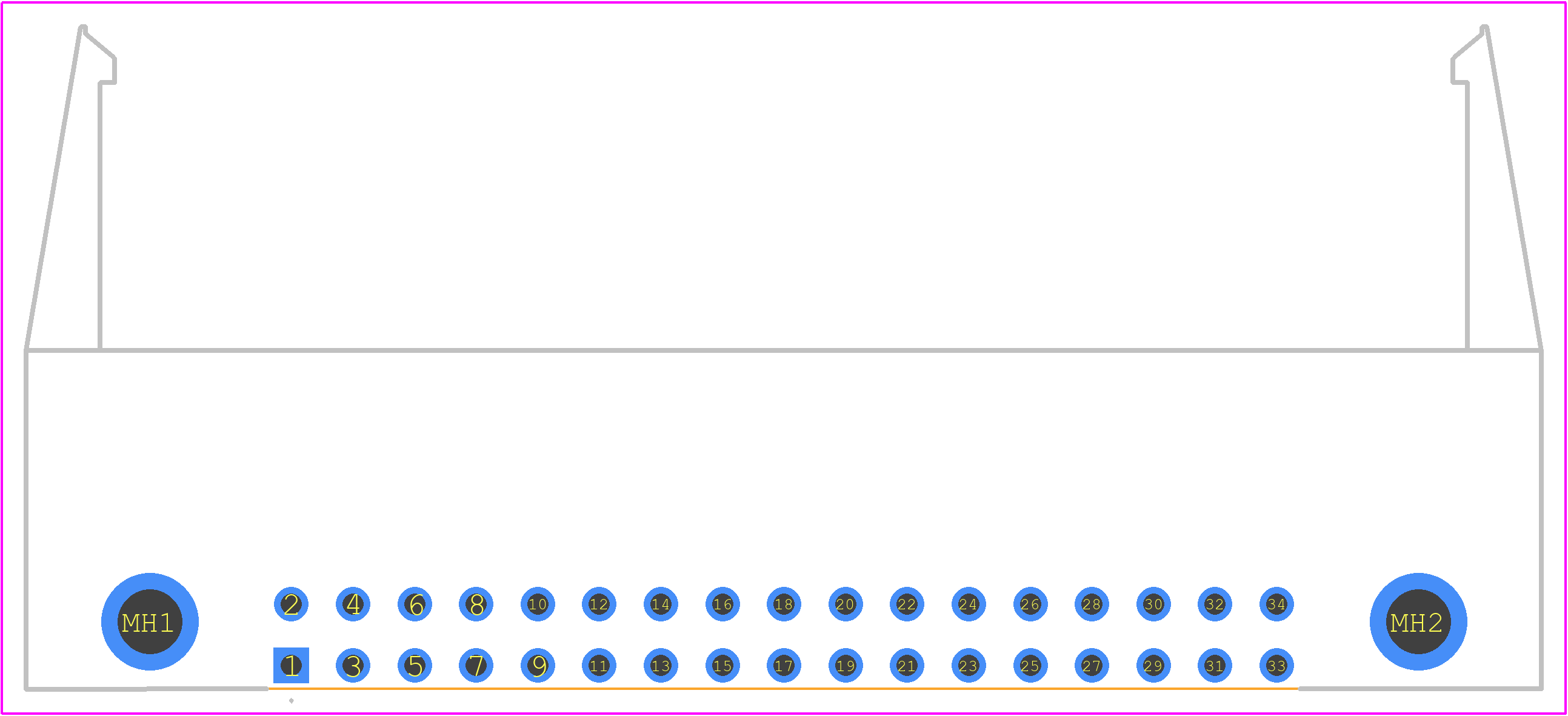

PCB Footprints
2-5499141-8 - TE Connectivity PCB footprint - Other - Other - 2-5499141-8-2
click to zoom
3D Models
2-5499141-8 - TE Connectivity - 3D model - Other - 2-5499141-8-2
click to zoom

2-5499141-8 Details

  • Manufacturer Part Number:

    2-5499141-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body Breadth:

    0.336 inch

  • Body Depth:

    0.548 inch

  • Body Length:

    2.46 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLUE

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LATCH & EJECT

  • Mounting Option 2:

    EJECT LATCH

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    DUAL POLARIZED

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

2-5499141-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2-5499141-8 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The 2-5499141-8 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. However, it's not suitable for direct exposure to harsh outdoor environments or high-pressure water jets. For outdoor or harsh environmental applications, consider using connectors with higher IP ratings or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes. However, you should ensure that the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during the connection process. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, it's essential to follow the recommended PCB layout guidelines provided by TE Connectivity to ensure proper connector mating and to prevent damage to the PCB or connector. Pay attention to the recommended keep-out zones, hole sizes, and pad layouts to ensure a reliable connection.
