2000890000 - Weidmüller

Description: PCB connector RJ45 modular jack, Cat. 5 , SMD solder connection, Shielding: Yes, LED: No, Gold over nickel, Tape

Download 2000890000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2000890000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

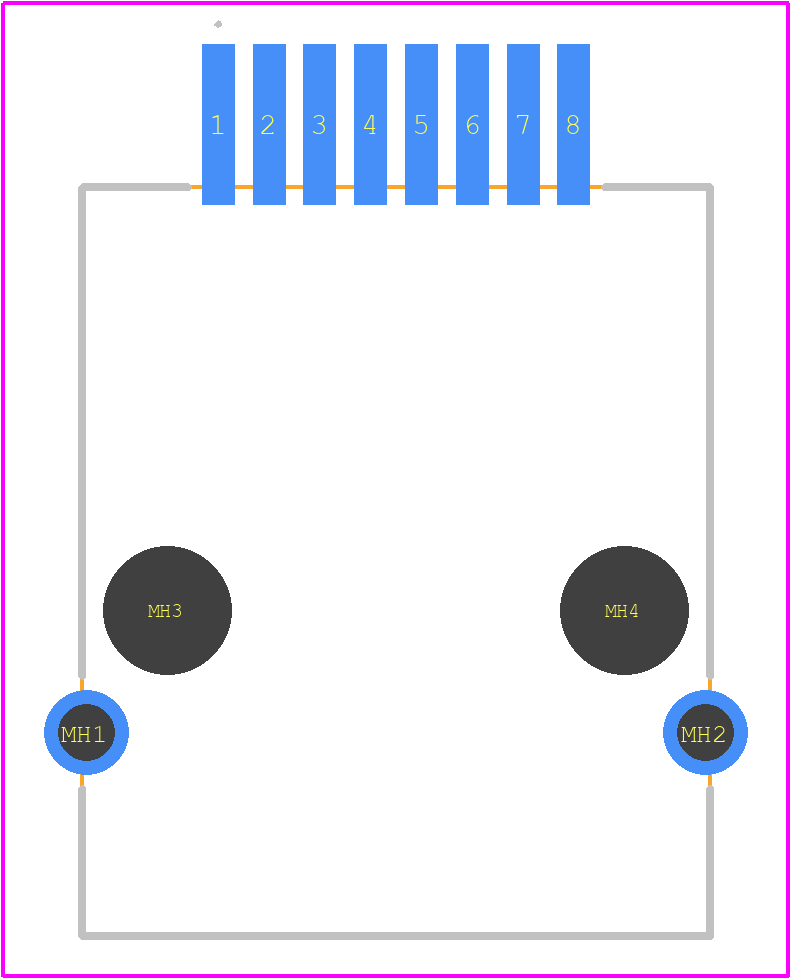

2000890000 - Weidmüller PCB footprint - Other - Other - 2000890000-1
click to zoom
3D Models
2000890000 - Weidmüller - 3D model - Other - 2000890000-1
click to zoom

2000890000 Details

  • Manufacturer Part Number:

    2000890000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

2000890000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 2000890000 is -40°C to 85°C, according to Weidmüller's specifications.
  • Yes, the 2000890000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental safety.
  • The recommended torque for the screw terminals on the 2000890000 is 0.5 Nm to 1.2 Nm, depending on the wire size and type, as specified in Weidmüller's documentation.
  • The 2000890000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications only.
  • The maximum wire size that can be connected to the 2000890000 is 2.5 mm² (AWG 14) for solid wires and 1.5 mm² (AWG 16) for stranded wires, according to Weidmüller's specifications.
