2007209-1 - TE Connectivity

Description: Standard Card Edge Connectors CONNECTOR ASSY HIGHCURRENT CARDEDGE

Download 2007209-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2007209-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

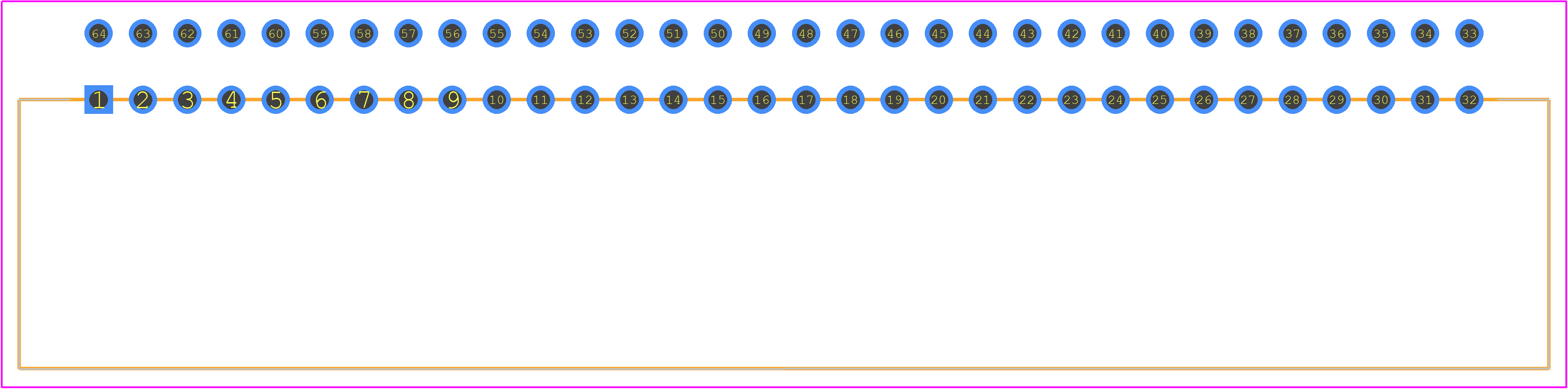

2007209-1 - TE Connectivity PCB footprint - Other - Other - 2007209-1-2
click to zoom
3D Models
2007209-1 - TE Connectivity - 3D model - Other - 2007209-1-2
click to zoom

2007209-1 Details

  • Manufacturer Part Number:

    2007209-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6.05A

  • Mating Contact Row Spacing:

    0.15 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    6.05 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

2007209-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 2007209-1 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to consult with a TE Connectivity representative for specific application guidance.
  • The maximum operating temperature for the 2007209-1 connector is 125°C (257°F), but it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • The 2007209-1 connector has a sealed design, but it's not intended for immersion in saltwater or exposure to harsh chemicals. For such applications, consider using a connector with a higher IP rating or consult with TE Connectivity for custom solutions.
  • The 2007209-1 connector is rated for a minimum of 500 mating cycles, but this can vary depending on the application and environmental conditions. Consult with TE Connectivity for specific guidance on mating cycle life.
