- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2007435-7
- Part Number 2007435-7
- Manufacturer TE Connectivity
- Pin Count 23
- Part Category Connector
- Package Category Other

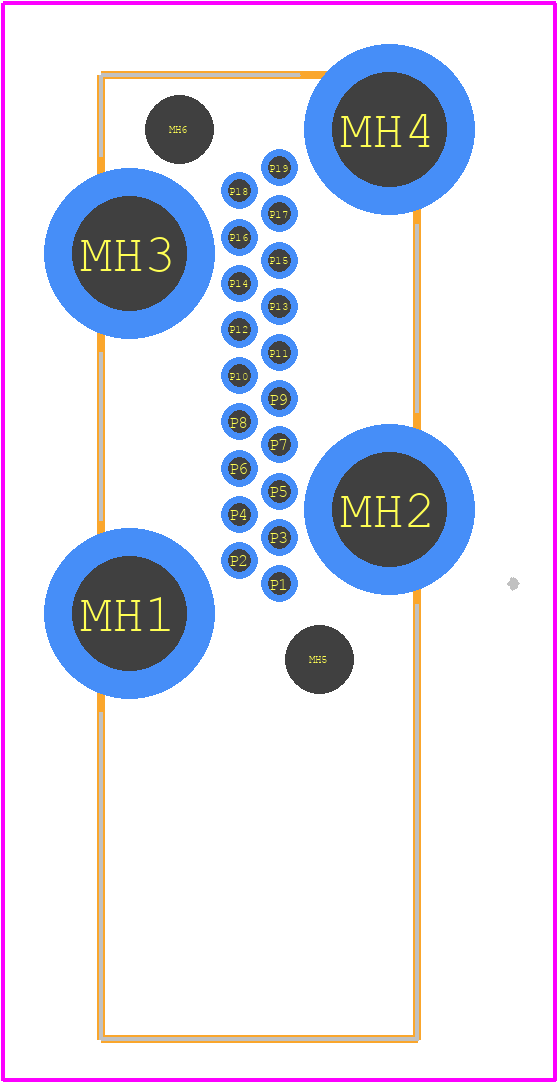

- Footprint Name Other - 2007435-7-3
- Released Date Oct 21, 2020
- Last Modified Date Jan 8, 2025 3:47 PM UTC
- Pinout / Pin List Click Here (Member Only)
2007435-7 Details
-
Manufacturer Part Number:
2007435-7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
9 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
7.7
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
DISPLAYPORT CONNECTOR
-
Contact Design:
PREASSEM CONN
2007435-7 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 2007435-7 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The operating temperature range for the 2007435-7 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
The 2007435-7 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications with exposure to harsh chemicals or prolonged immersion in water.
-
While the 2007435-7 connector is designed for use with AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2007435-7 Overview

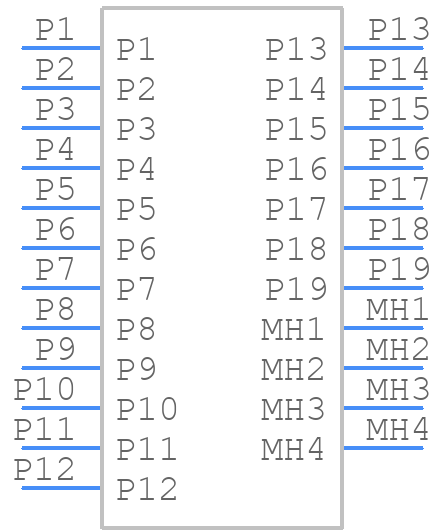

Use the download button to access the 2007435-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20074,
or try a keyword search, such as Telecom and Datacom Connectors
