Part Image

2007464-1 - TE Connectivity

Description: Body Features: Heat Sink Height Class Networking Short | Heat Sink Height 4.2 MM | Heat Sink Style Pin | Heat Sink Height .165 INCH | Configuration Features: Port Matrix Configuration 1 x 1 | Number of Ports 1 | Dimensions: PCB Thickness (Recommended) .089 INCH | PCB Thickness (Recommended) 2.25 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Operation/Application: Circuit Application Signal | Heat Sink Compatible Yes | Pluggable I/O Applications SFP

Download 2007464-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

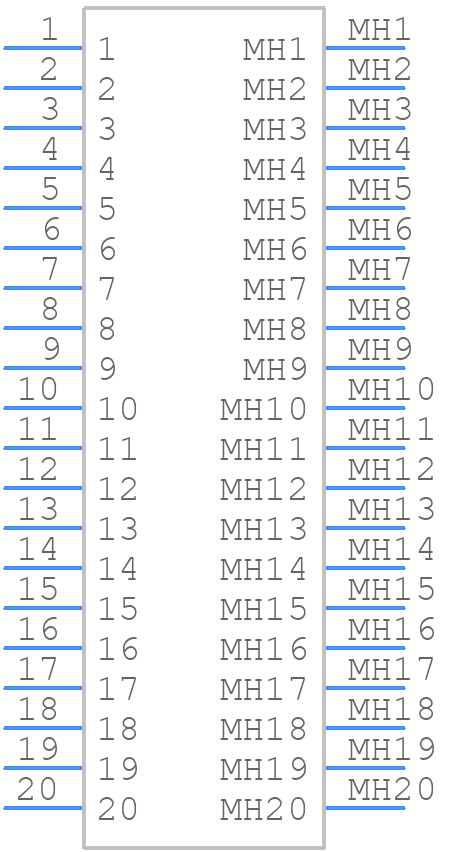

2007464-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

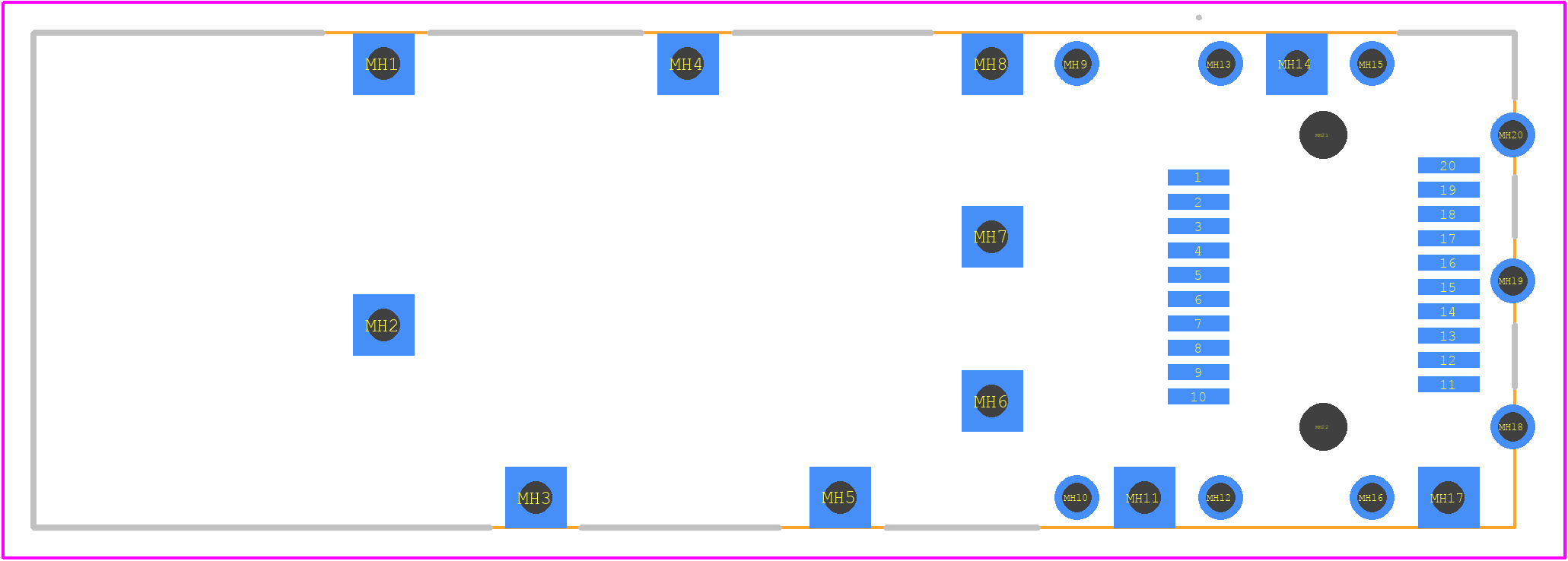

2007464-1 - TE Connectivity PCB footprint - Other - Other - 2007464-1-4
click to zoom
3D Models
2007464-1 - TE Connectivity - 3D model - Other - 2007464-1-4
click to zoom

2007464-1 Details

  • Manufacturer Part Number:

    2007464-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    TE Connectivity

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • Design Use:

    SIGNAL

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Used With:

    SFP+ SMT CONNECTOR

  • Wire Gauge:

    0 AWG

2007464-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2007464-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 2007464-1 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2007464-1 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
  • The mating cycle life of the 2007464-1 connector is 500 cycles minimum.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2007464-1 Overview

Use the download button to access the 2007464-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20074, or try a keyword search, such as Heat Sinks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
