2007492-8 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 2 x 1 | Number of Ports 2 | Number of Positions 40 | Contact Features: Tail Plating Material Tin | Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel | Contact Mating Area Plating Material Thickness .76 MICM | Dimensions: PCB Thickness (Recommended) .059 INCH | PCB Thickness (Recommended) 1.5 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Centerline (Pitch) .032 INCH | Cage Material Nickel Silver | Cent

Download 2007492-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2007492-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

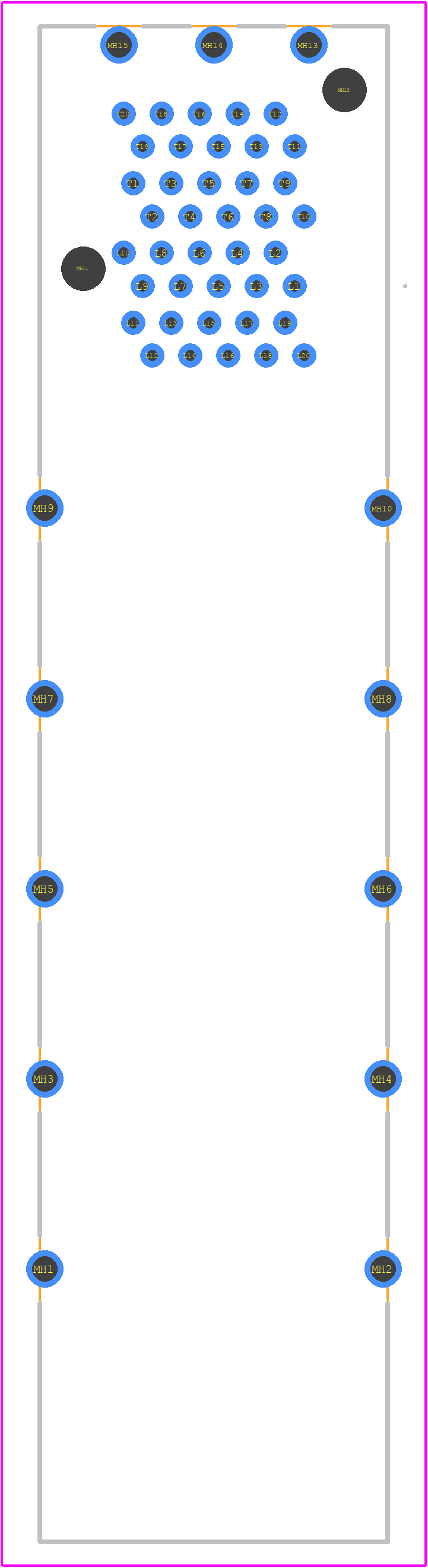

2007492-8 - TE Connectivity PCB footprint - Other - Other - 2007492-8-5
click to zoom
3D Models
2007492-8 - TE Connectivity - 3D model - Other - 2007492-8-5
click to zoom

2007492-8 Details

  • Manufacturer Part Number:

    2007492-8

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.97

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

2007492-8 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2007492-8 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 2007492-8 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
  • The maximum operating temperature for the 2007492-8 connector is 125°C (257°F), but it's recommended to derate the connector's performance at higher temperatures.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and safety. It's best to follow the manufacturer's recommended wire gauge specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2007492-8 Overview

Use the download button to access the 2007492-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20074, or try a keyword search, such as Telecom and Datacom Connectors
