200AWMDP2T4A1M61RE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC DPDT, On-On, Panel Mount, Through Hole, Right Angle, Vertical

Download 200AWMDP2T4A1M61RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 200AWMDP2T4A1M61RE model

Email notifications will be applied after download.

Send part feedback

Symbol

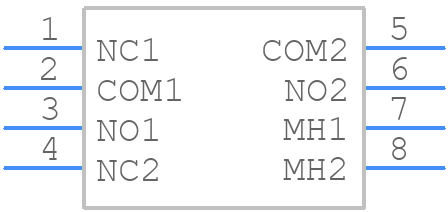

200AWMDP2T4A1M61RE - E-Switch - PCB symbol

PCB Footprints

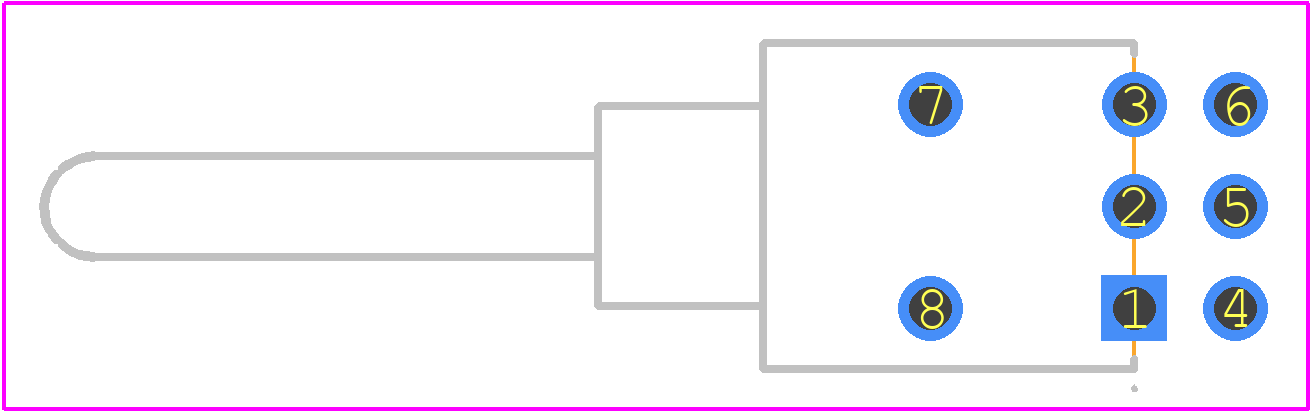

200AWMDP2T4A1M61RE - E-Switch PCB footprint - Other - Other - 200AWMDP2T4A1M61RE-1

3D Models

200AWMDP2T4A1M61RE - E-Switch - 3D model - Other - 200AWMDP2T4A1M61RE-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 200AWMDP2T4A1M61RE
Part Number 200AWMDP2T4A1M61RE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 200AWMDP2T4A1M61RE-1
Released Date Jan 6, 2025
Last Modified Date Jul 25, 2026 1:05 PM UTC
Pinout / Pin List Click Here (Member Only)

200AWMDP2T4A1M61RE Details

Manufacturer Part Number:
200AWMDP2T4A1M61RE
Manufacturer:
E-Switch Inc
