200RDP1T1B1M6R - E-Switch

Description: TOGGLE, 0.4VA, 48VAC/VDC DPDT, On-On Through Hole, Right Angle

Download 200RDP1T1B1M6R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 200RDP1T1B1M6R model

Email notifications will be applied after download.

Send part feedback

Symbol

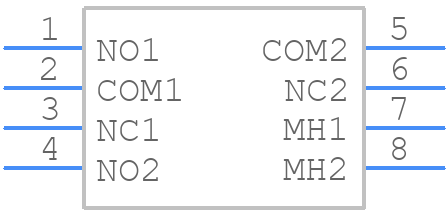

200RDP1T1B1M6R - E-Switch - PCB symbol

PCB Footprints

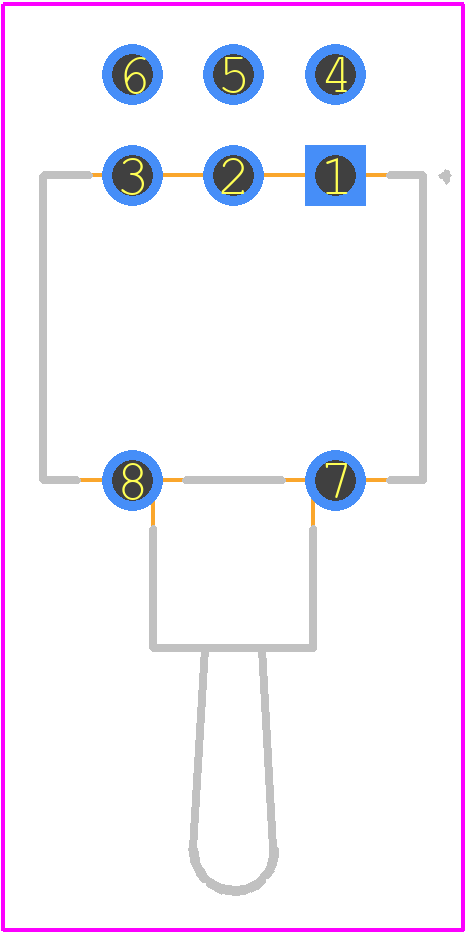

200RDP1T1B1M6R - E-Switch PCB footprint - Other - Other - 200RDP1T1B1M6R-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 200RDP1T1B1M6R
Part Number 200RDP1T1B1M6R
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 200RDP1T1B1M6R-2
Released Date May 24, 2025
Last Modified Date May 26, 2025 10:37 AM UTC
Pinout / Pin List Click Here (Member Only)

200RDP1T1B1M6R Details

Manufacturer Part Number:
200RDP1T1B1M6R
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

200RDP1T1B1M6R Overview

Use the download button to access the 200RDP1T1B1M6R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 200RD, or try a keyword search, such as Toggle Switches
