2021602301 - HARTING

Description: Connectors, Female connector, Press-in termination, Rated current: ‌1 A, Contacts: 160, Straight, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Performance level: 2, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Liquid crystal polymer (LCP), Beige

Download 2021602301 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 2021602301 model

Email notifications will be applied after download.

Send part feedback

Symbol

2021602301 - HARTING - PCB symbol

PCB Footprints

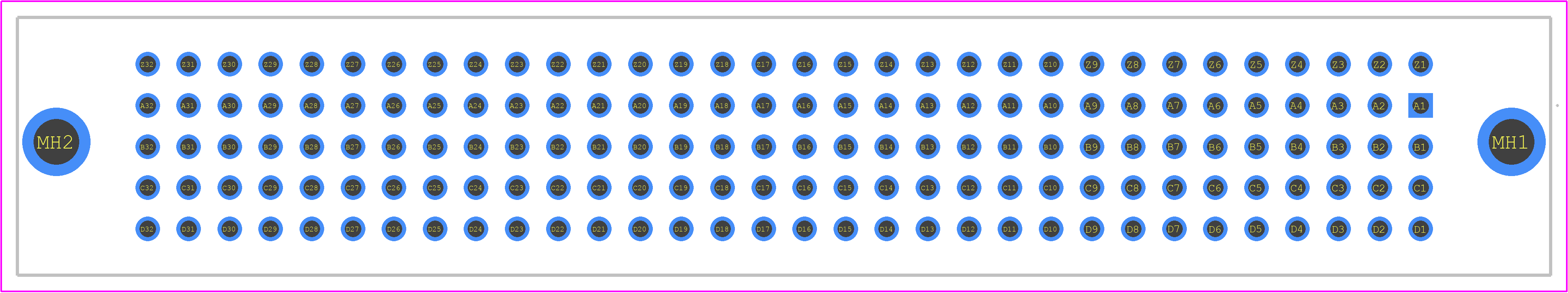

2021602301 - HARTING PCB footprint - Other - Other - 2021602301-2

3D Models

2021602301 - HARTING - 3D model - Other - 2021602301-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2021602301
Part Number 2021602301
Manufacturer HARTING
Pin Count 162
Part Category Connector
Package Category Other
Footprint Name Other - 2021602301-2
Released Date Jun 28, 2021
Last Modified Date Oct 24, 2023 6:28 AM UTC
Pinout / Pin List Click Here (Member Only)

2021602301 Details

Manufacturer Part Number:
2021602301
Manufacturer:
HARTING Technology Group

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

2021602301 Overview

Use the download button to access the 2021602301 schematic symbol, PCB footprint, and 3D model.
