- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2027395-1
- Part Number 2027395-1
- Manufacturer TE Connectivity
- Pin Count 4
- Part Category Connector
- Package Category Other

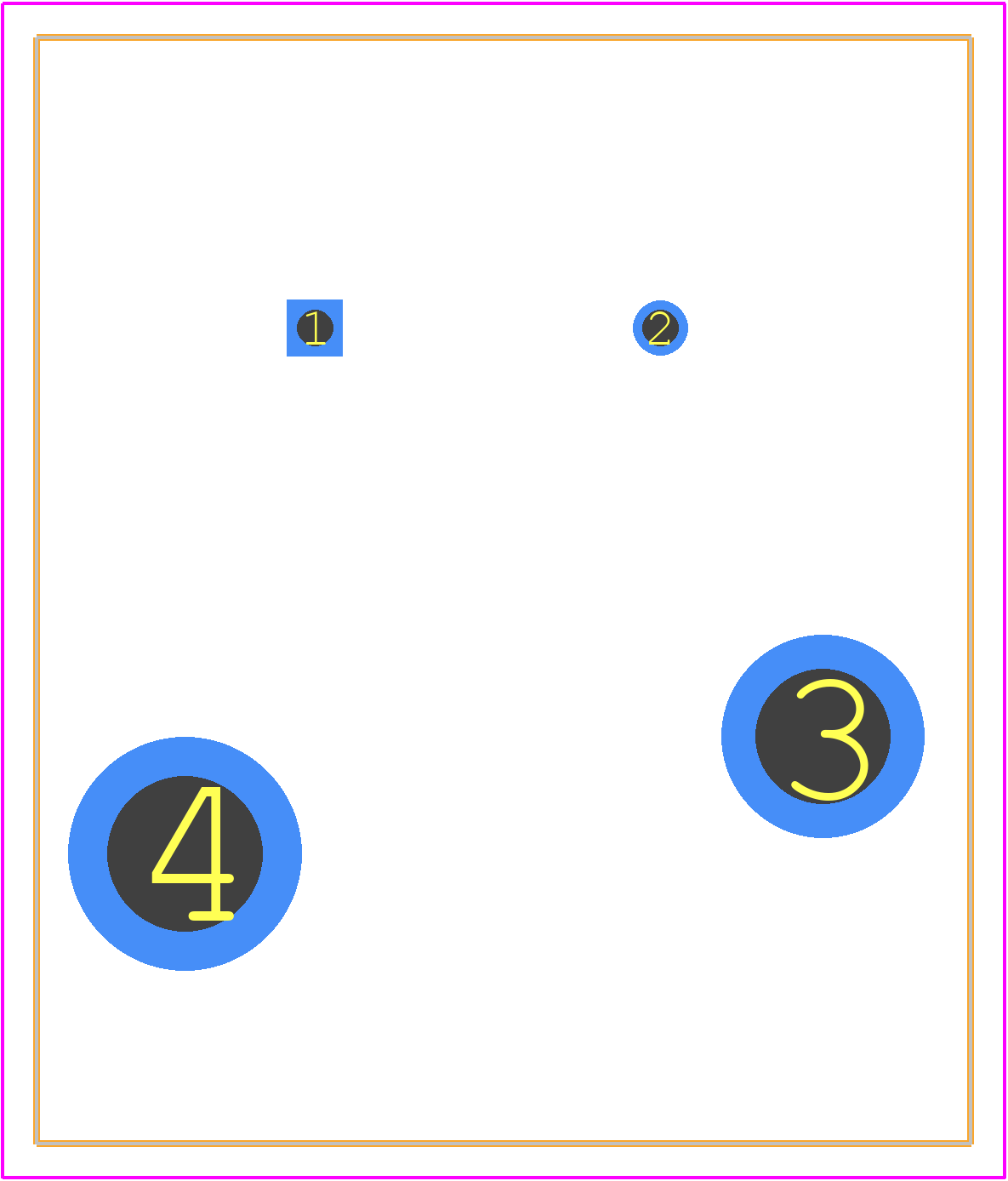

- Footprint Name Other - 2027395-1-1
- Released Date Jan 5, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
2027395-1 Details
-
Manufacturer Part Number:
2027395-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.41.00.50
-
Factory Lead Time:
19 Weeks, 3 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
6.75
-
Body Breadth:
27.4 mm
-
Body Height:
20.4 mm
2027395-1 Frequently Asked Questions (FAQs)
-
The recommended torque specification for the 2027395-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and to prevent damage to the connector.
-
Yes, the 2027395-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G.
-
The 2027395-1 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's also resistant to various chemicals, including fuels, oils, and cleaning solvents. However, it's essential to consult the datasheet and TE Connectivity's application notes for specific guidance on using the connector in harsh environments.
-
The 2027395-1 connector is rated for a minimum of 500 mating cycles. This means it can withstand repeated connections and disconnections without compromising its performance or reliability.
-
Yes, the 2027395-1 connector is designed to be compatible with other TE Connectivity products and systems. It's part of a larger family of connectors and can be used in conjunction with other TE Connectivity components to create a comprehensive connectivity solution.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2027395-1 Overview
Use the download button to access the 2027395-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20273,
or try a keyword search, such as Power/Signal Relays
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
