203540-E - TE Connectivity

Description: RJ45 Connector, Multiple Ports, 1 x 4, Standard Connector Contact Density, Jack, Shielded, Standard - Latch Down, 8 Position, Standard Profile

Download 203540-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

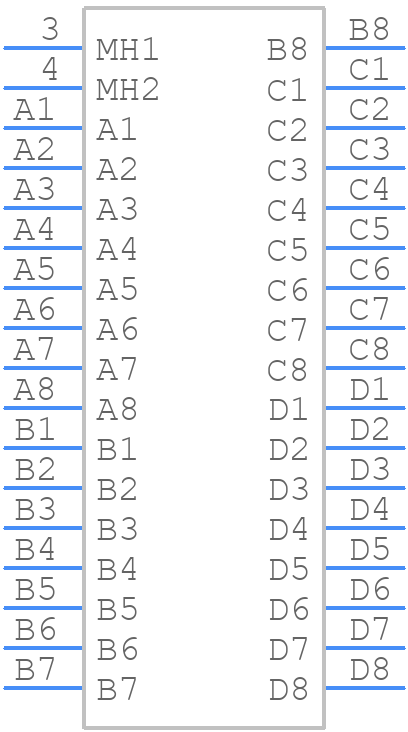

203540-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

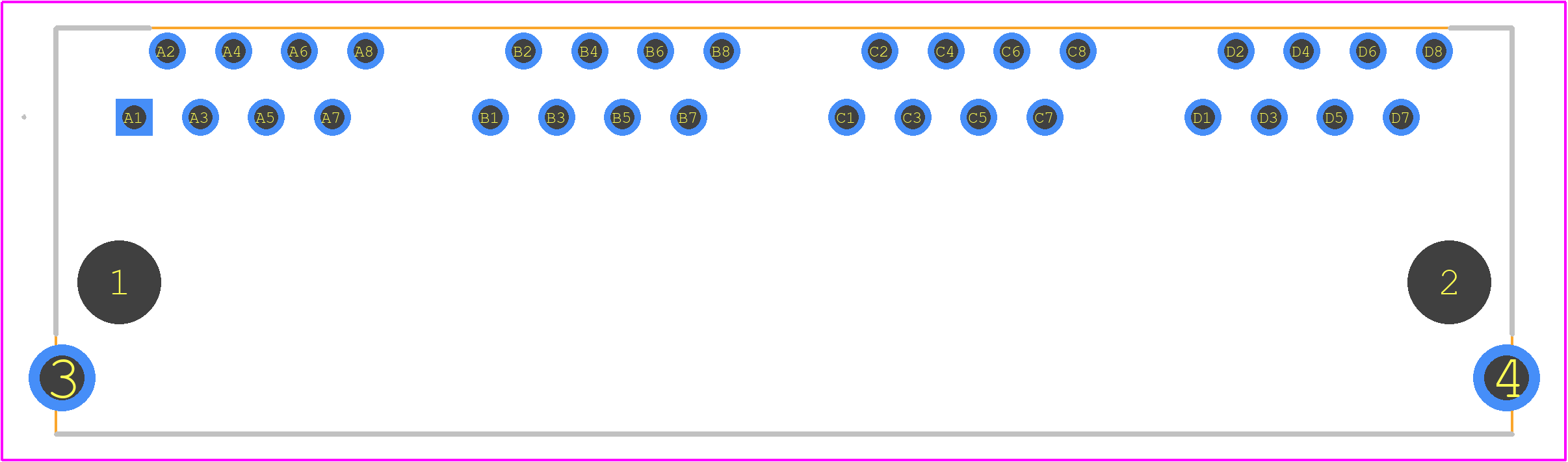

203540-E - TE Connectivity PCB footprint - Other - Other - 203540-E-2
click to zoom
3D Models
203540-E - TE Connectivity - 3D model - Other - 203540-E-2
click to zoom

203540-E Details

  • Manufacturer Part Number:

    203540-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Board Mounting Option:

    PEG

  • Body Depth:

    0.649 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

203540-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 203540-E connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes from AWG 18 to AWG 26. However, it's essential to verify the wire size and insulation diameter to ensure proper fit and connection reliability.
  • The 203540-E connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • The 203540-E connector is designed to meet the requirements of IEC 60512-2-1 and has a rating of IP67, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. However, it's essential to evaluate the specific environmental conditions and potential chemical exposure to ensure the connector's suitability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

203540-E Overview

Use the download button to access the 203540-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20354, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
