2041307-1 - TE Connectivity

Description: Body Features: Shield Material Brass | Connector Profile Offset - Overhangs PCB | Modular Jack Latch Orientation Inverted - Latch Up | Shield Plating Material Nickel | Configuration Features: Number of PCB Ground Tabs 2 | Number of Positions 8 | Number of Loaded Positions 8 | Connector Contact Density Standard | Port Matrix Configuration 1 x 1 | PCB Mount Orientation Right Angle | Port Configuration Single Port | Status Light Type Not Illuminated | Contact Features: Contact Current Rating (Max) 1 AMP | Cont

Download 2041307-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2041307-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

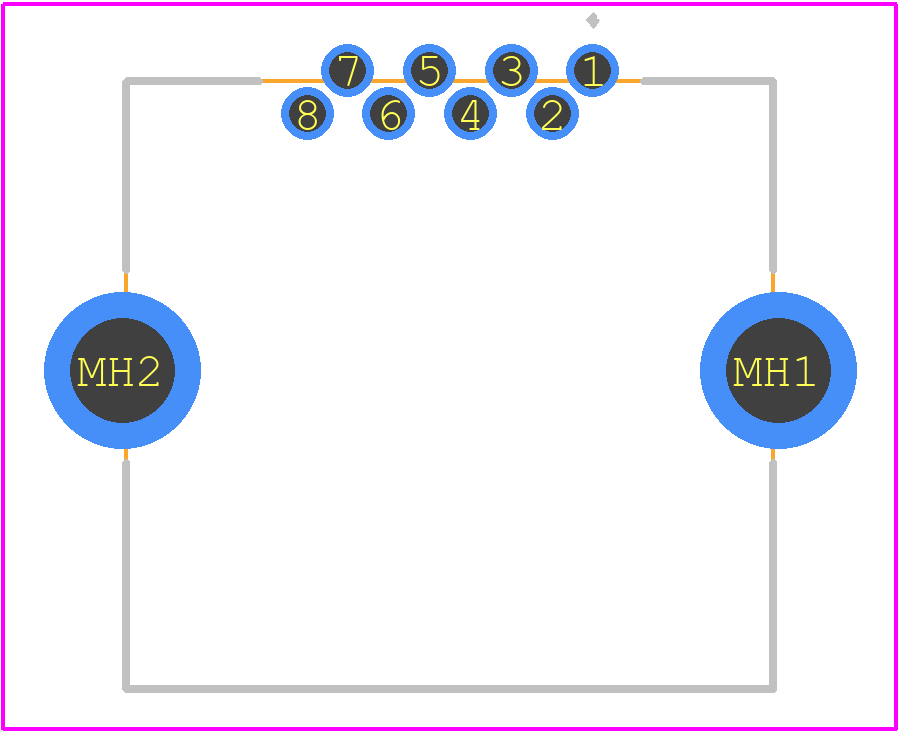

2041307-1 - TE Connectivity PCB footprint - Other - Other - 2041307-1-3
click to zoom
3D Models
2041307-1 - TE Connectivity - 3D model - Other - 2041307-1-3
click to zoom

2041307-1 Details

  • Manufacturer Part Number:

    2041307-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Depth:

    0.322 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE9T

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    6u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.059 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0
