20455-A20E-76 - I-Pex

Description: VESA standard connector, Suitable for high-data-rate transfer (20 Gbps/lane), Mechanical locking bar, 0.5 mm pitch, Horizontal mating type micro-coaxial connector

Download 20455-A20E-76 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

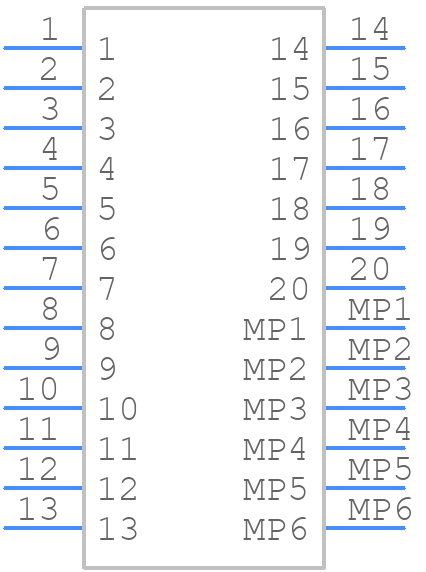

Symbol
20455-A20E-76 - I-Pex - PCB symbol
click to zoom
PCB Footprints
20455-A20E-76 - I-Pex PCB footprint - Other - Other - 20455-A20E-76-1
click to zoom
3D Models
20455-A20E-76 - I-Pex - 3D model - Other - 20455-A20E-76-1
click to zoom

20455-A20E-76 Details

  • Manufacturer Part Number:

    20455-A20E-76

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    I-PEX Co Ltd

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

20455-A20E-76 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to clean the connector contacts before mating, apply a suitable contact lubricant, and follow the recommended mating force and sequence.
  • The maximum operating temperature for the 20455-A20E-76 connector is 125°C, as specified in the datasheet. However, it's recommended to derate the temperature based on the specific application and environmental conditions.
  • Yes, the 20455-A20E-76 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to follow the recommended mounting and securing procedures to ensure reliable connections.
  • The recommended torque for the 20455-A20E-76 connector's screw locks is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

20455-A20E-76 Overview

Use the download button to access the 20455-A20E-76 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20455, or try a keyword search, such as Headers and Edge Type Connectors
