The recommended mating sequence for the 20535-020E-02 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the 20535-020E-02 connector is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the X, Y, and Z axes. However, it's recommended to perform additional testing and validation for specific vibration profiles.
The recommended minimum bend radius for the cable connected to the 20535-020E-02 connector is 5mm. Exceeding this radius may cause damage to the cable or the connector.
Yes, the 20535-020E-02 connector is designed for automated assembly and can be used with standard pick-and-place machines. However, it's recommended to consult with I-PEX Co Ltd or a qualified assembly partner for specific guidance on assembly processes.
The 20535-020E-02 connector is rated for operation in temperatures ranging from -40°C to 105°C. However, it's recommended to consult the datasheet and perform additional testing for specific applications that may exceed these temperature ranges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
20535-020E-02 Overview

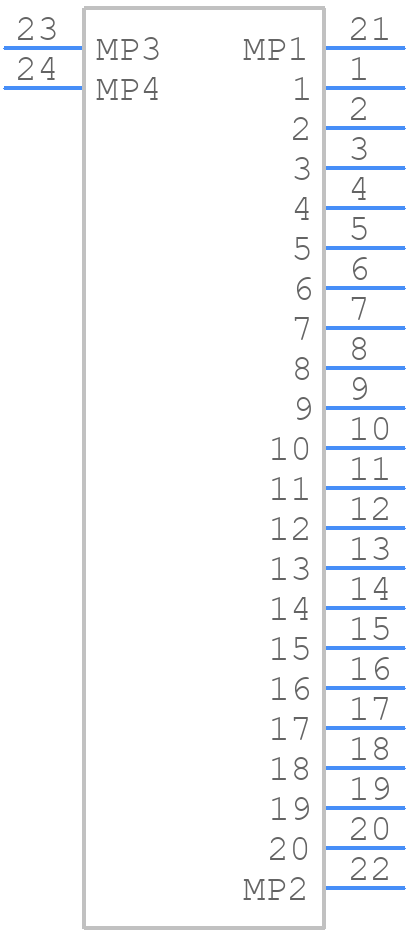

Use the download button to access the 20535-020E-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20535,
or try a keyword search, such as Headers and Edge Type Connectors
