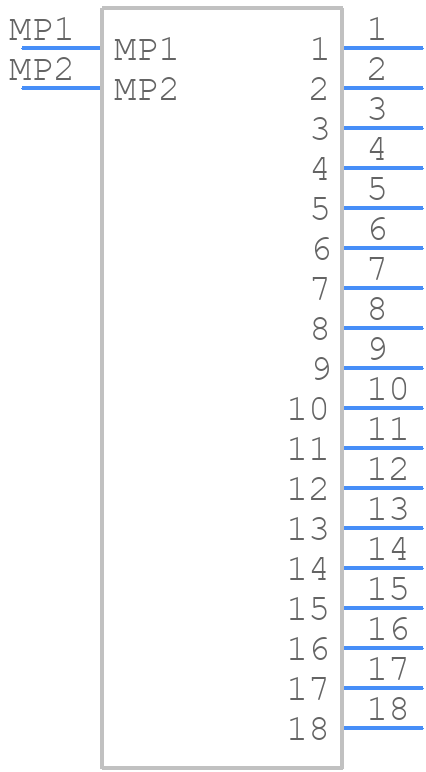

20542-018E-01 - I-Pex

20542-018E-01 Details

• Manufacturer Part Number:

  20542-018E-01

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  I-PEX Co Ltd

• YTEOL:

  8

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.039 inch

• Body Depth:

  0.118 inch

• Body Length:

  0.421 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  40 mΩ

• Contact Style:

  COMPRESSION

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  200VAC V

• Durability:

  20 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.02 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LATCH

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  4u inch

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  18

• UL Flammability Code:

  94V-0
