205PHC400K - Cornell Dubilier

Description: Film Capacitors 2uF 400 Volts 10% FILM/IC

Download 205PHC400K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
205PHC400K - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

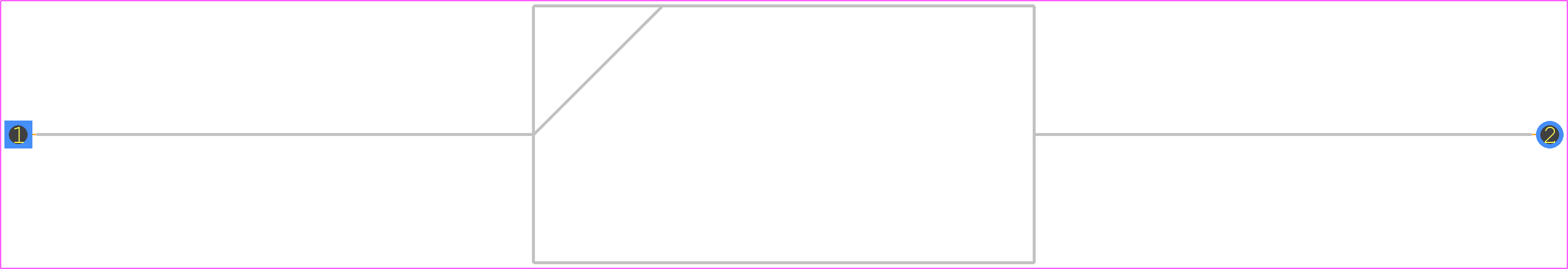

205PHC400K - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 205PHC400K
click to zoom
3D Models
205PHC400K - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 205PHC400K
click to zoom

205PHC400K Details

  • Manufacturer Part Number:

    205PHC400K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    7.18

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ AND 70CEL

  • Capacitance:

    2 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    17.5 mm

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    4.6 mΩ

  • JESD-609 Code:

    e3

  • Length:

    34 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    250 V

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    9000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

205PHC400K Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 205PHC400K is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in demanding applications.
  • The 205PHC400K is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which ensures its reliability in applications with high humidity levels.
  • The ESR of the 205PHC400K is not explicitly stated in the datasheet. However, according to Cornell Dubilier Electronics Inc., the typical ESR is around 0.02 ohms at 100 kHz and 25°C.
  • Yes, the 205PHC400K is suitable for use in DC-DC converter applications due to its low ESR, high ripple current capability, and high reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

205PHC400K Overview

Use the download button to access the 205PHC400K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 205PH, or try a keyword search, such as Ceramic Capacitors
