A good PCB layout for the 208-5 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces to reduce noise and electromagnetic interference (EMI).
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable negative voltage source or ground, depending on the application. Consult the datasheet for specific voltage ranges.
The maximum power dissipation of the 208-5 is typically around 1.5W. To prevent overheating, ensure good airflow, use a heat sink if necessary, and avoid operating the device near its maximum power rating for extended periods.
To troubleshoot issues with the 208-5, check the power supply voltage, ensure proper biasing, and verify that the input and output impedances are matched. Use an oscilloscope to check for oscillations or signal distortion.
The 208-5 is designed for commercial applications, but it can be used in high-reliability or high-temperature applications with proper derating and consideration of the device's operating temperature range (-40°C to +85°C). Consult the datasheet and manufacturer's guidelines for specific requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
208-5 Overview

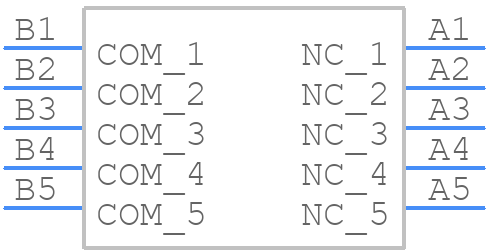

Use the download button to access the 208-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Power/Mains Transformers
