208-7 - CTS

Description: DIP Switches / SIP Switches DIP switches/SIP switches, SPST, SLIDE ACTUATOR, 7 POS, Thru-Hole, UNSEALED, TUBE, OFF

Download 208-7 Model

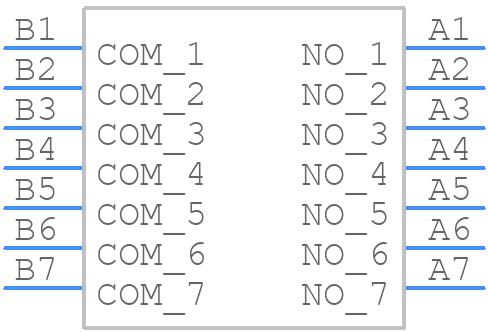

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
208-7 - CTS PCB footprint - Other - Other - 208-7-3
click to zoom
3D Models
208-7 - CTS  - 3D model - Other - 208-7-3
click to zoom

208-7 Details

  • Manufacturer Part Number:

    208-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    5.6

  • Body Breadth:

    9.78 mm

  • Body Height:

    7.6 mm

  • Body Length or Diameter:

    19.96 mm

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    .05A@24VDC

  • Contact Voltage(DC)-Max:

    24 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Hole Count:

    14

  • Packing Method:

    ANTI-STATIC TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

208-7 Frequently Asked Questions (FAQs)

  • CTS recommends a symmetrical PCB layout with a solid ground plane to minimize noise and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • CTS recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device to protect the 208-7 from electrostatic discharge. The device should be placed as close as possible to the 208-7.
  • The 208-7 is rated for operation from -40°C to +125°C. However, it's recommended to derate the device's performance at temperatures above 100°C to ensure reliability.
  • Yes, the 208-7 is designed to withstand high-vibration environments. However, it's recommended to follow CTS's guidelines for vibration testing and to ensure proper PCB mounting and soldering to prevent mechanical stress.
  • CTS recommends using a logic analyzer or an oscilloscope to troubleshoot issues with the 208-7. Check the device's output signals, power supply, and input signals to identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

208-7 Overview

Use the download button to access the 208-7 schematic symbol, PCB footprint, and 3D model.
