208-8S - CTS

Description: Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 50mA 24VDC

Download 208-8S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 208-8S model

Email notifications will be applied after download.

Send part feedback

Symbol

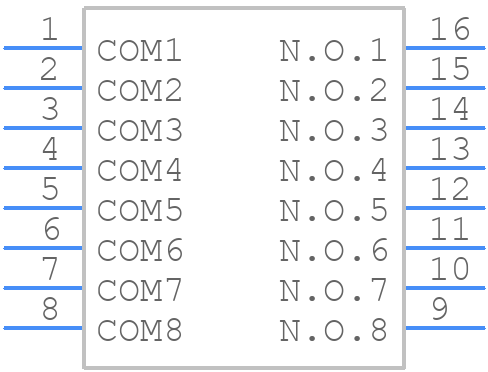

208-8S - CTS - PCB symbol

PCB Footprints

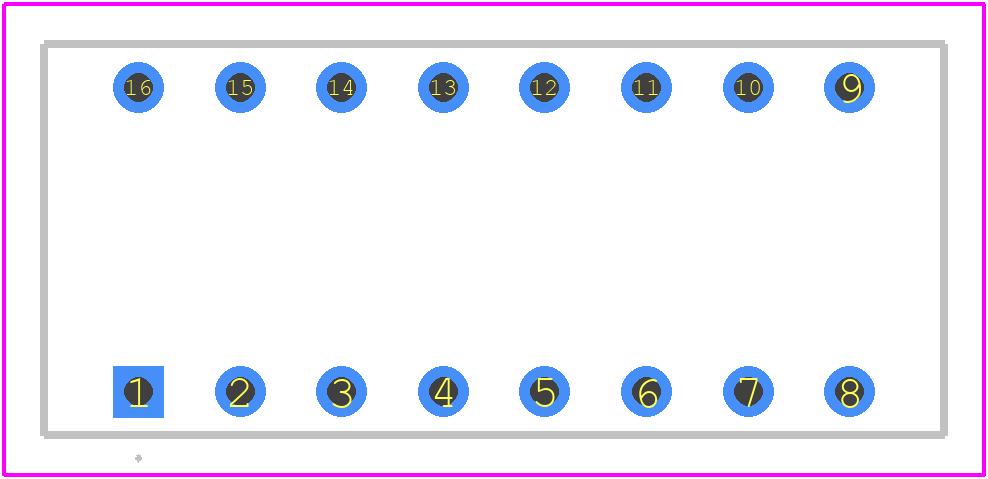

208-8S - CTS PCB footprint - Other - Other - 208-8S-1

3D Models

208-8S - CTS - 3D model - Other - 208-8S-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 208-8S
Part Number 208-8S
Manufacturer CTS
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - 208-8S-1
Released Date Apr 25, 2026
Last Modified Date Apr 25, 2026 1:23 PM UTC
Pinout / Pin List Click Here (Member Only)

208-8S Details

Manufacturer Part Number:
208-8S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
4 Weeks
Manufacturer:
CTS Corporation
YTEOL:
8
JESD-609 Code:
e3
Terminal Finish:
Tin (Sn)

Trust Checks

Community Provided

System Verified

Community Approved

208-8S Overview

Use the download button to access the 208-8S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 208-8, or try a keyword search, such as DIP Switches
