209141-1110 - Molex

209141-1110 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 209141-1110 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental applications?
  The 209141-1110 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for harsh environmental conditions, such as direct exposure to water, high humidity, or extreme temperatures.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the suitability of alternative wire sizes.

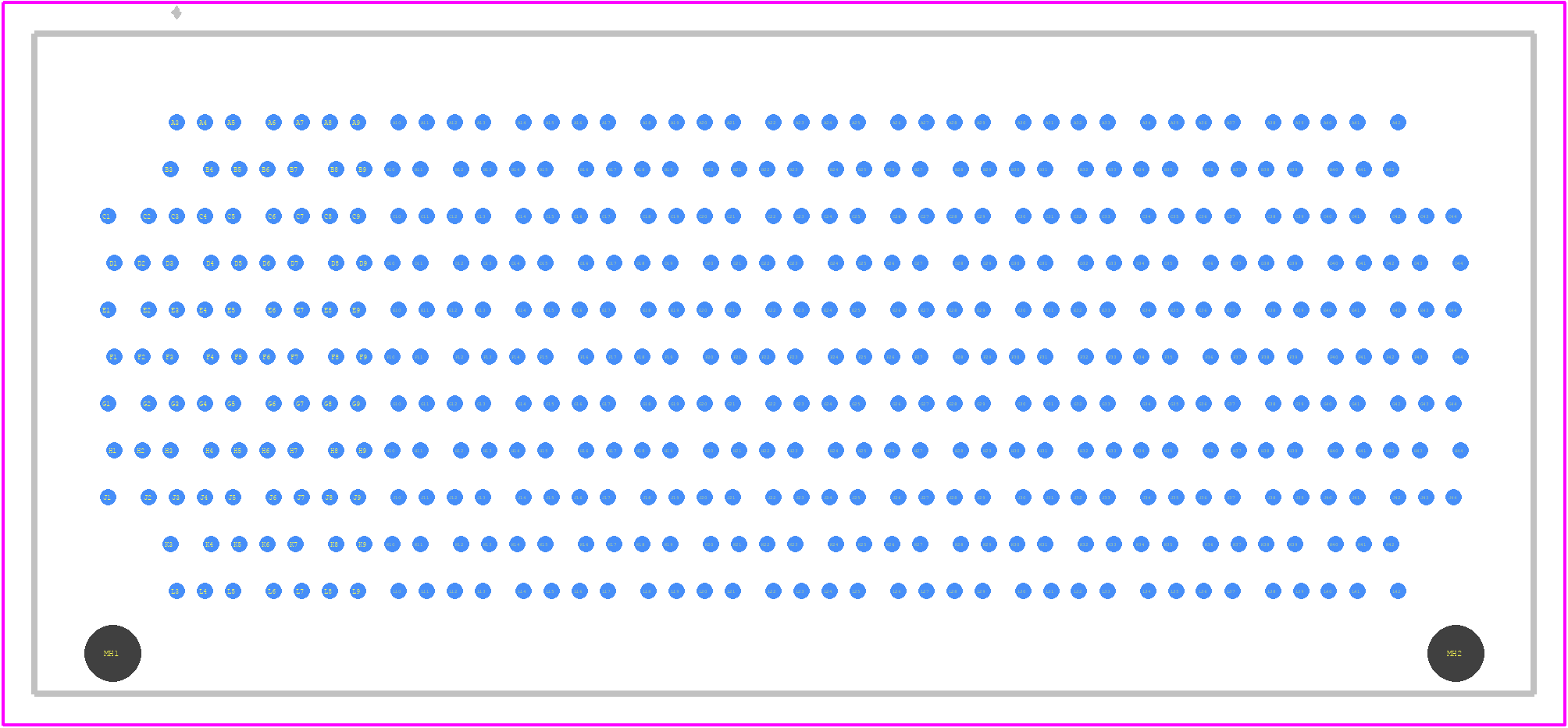

• Are there any specific PCB layout considerations for this connector?
  Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow Molex's recommended PCB layout guidelines, including keeping the PCB traces away from the connector's mounting holes and ensuring sufficient clearance around the connector.
