2092-1173 - Wago

Description: 1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 3-pole; 1.4 mm Ø solder pin

Download 2092-1173 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

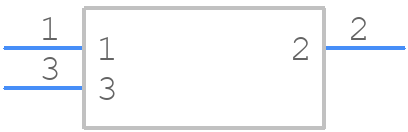

2092-1173 - Wago - PCB symbol
click to zoom
PCB Footprints

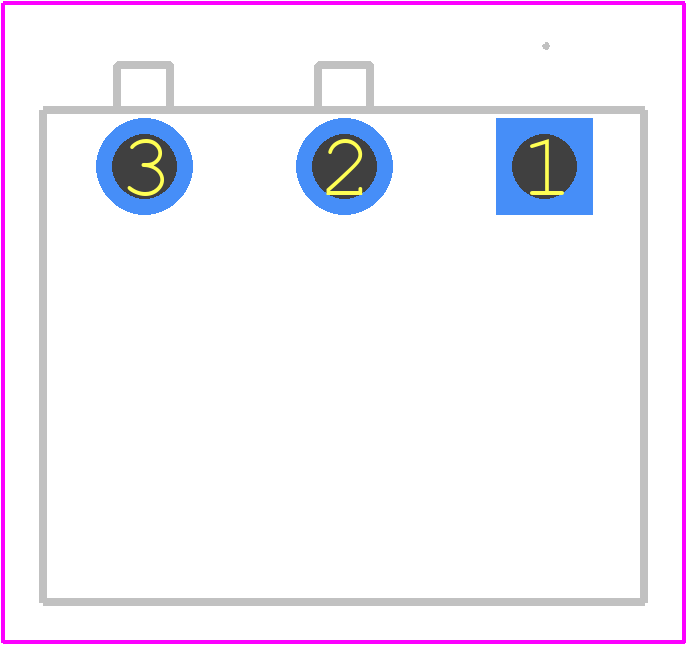

2092-1173 - Wago PCB footprint - Other - Other - 2092-1173-1
click to zoom
3D Models
2092-1173 - Wago - 3D model - Other - 2092-1173-1
click to zoom

2092-1173 Details

  • Manufacturer Part Number:

    2092-1173

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0; GF PPA

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Packing Method:

    BOX

  • Rated Current:

    16 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; KEMA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

2092-1173 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 2092-1173 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2092-1173 connector is designed to be used with both solid and stranded wires, with a wire size range of 0.5 mm² to 2.5 mm².
  • Yes, the 2092-1173 connector is UL certified, meeting the requirements of UL 486A and UL 486B standards.
  • The operating temperature range of the 2092-1173 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2092-1173 Overview

Use the download button to access the 2092-1173 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2092-, or try a keyword search, such as Terminals and Terminal Blocks
