2092-1176 - Wago

Description: 1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 6-pole; 1.4 mm Ø solder pin

Download 2092-1176 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2092-1176 - Wago - PCB symbol
click to zoom

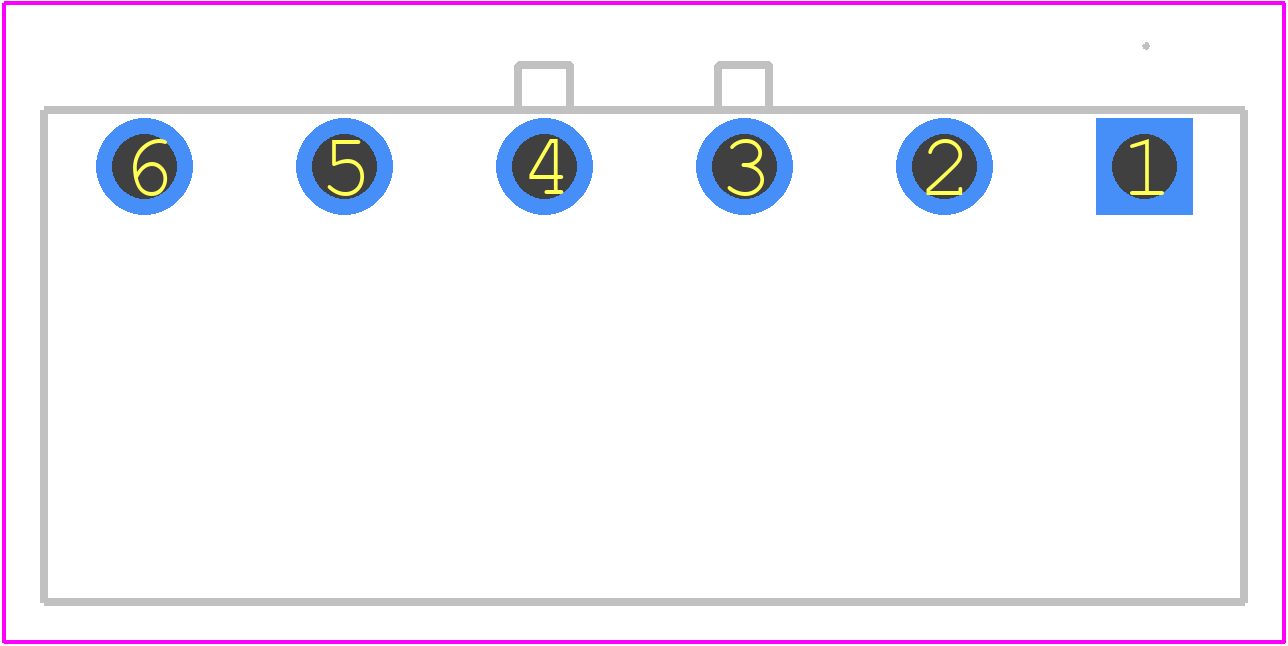

PCB Footprints
2092-1176 - Wago PCB footprint - Other - Other - 2092-1176-1
click to zoom
3D Models
2092-1176 - Wago - 3D model - Other - 2092-1176-1
click to zoom

2092-1176 Details

  • Manufacturer Part Number:

    2092-1176

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED POLYPHTHALAMIDE

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    CONNECTOR

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;CUL;EN;IEC;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

2092-1176 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 2092-1176 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2092-1176 connector is designed to work with both solid and stranded wires, but it's recommended to use wires with a minimum strand count of 30 for reliable connections.
  • The maximum operating temperature for the 2092-1176 connector is 125°C (257°F), making it suitable for use in high-temperature applications.
  • Yes, the 2092-1176 connector is UL certified, meeting the safety standards for use in the United States and Canada.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2092-1176 Overview

Use the download button to access the 2092-1176 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2092-, or try a keyword search, such as Terminals and Terminal Blocks
