2092-1406 - Wago

Description: THT male header; 1.4 mm Ø solder pin; straight; Pin spacing 5 mm; 6-pole

Download 2092-1406 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2092-1406 - Wago - PCB symbol
click to zoom
PCB Footprints

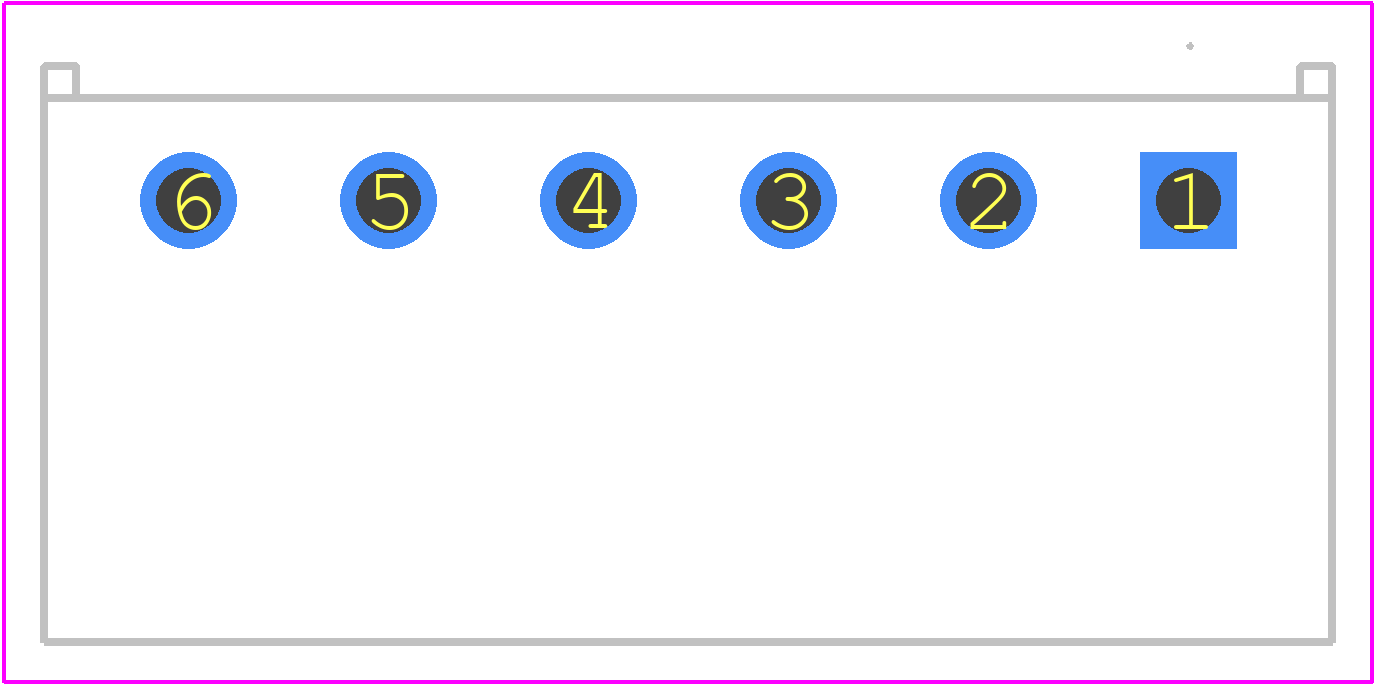

2092-1406 - Wago PCB footprint - Other - Other - 2092-1406-1
click to zoom
3D Models
2092-1406 - Wago - 3D model - Other - 2092-1406-1
click to zoom

2092-1406 Details

  • Manufacturer Part Number:

    2092-1406

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED POLYPHTHALAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;CUL;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

2092-1406 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 2092-1406 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2092-1406 connector is designed to be used with both solid and stranded wires, with a wire size range of 0.5 mm² to 2.5 mm².
  • The operating temperature range of the 2092-1406 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 2092-1406 connector is UL certified, meeting the requirements of UL 486A-486B and UL 1977.
