209B-DG02 - ATTEND

Description: Socket; USB A; on PCBs; THT; angled 90°; middle board mount

Download 209B-DG02 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 209B-DG02 model

Email notifications will be applied after download.

Send part feedback

Symbol

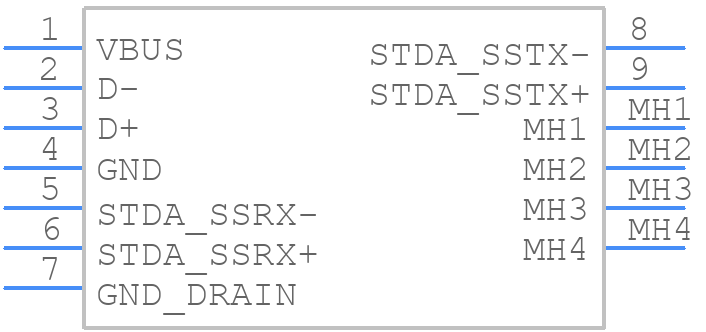

209B-DG02 - ATTEND - PCB symbol

PCB Footprints

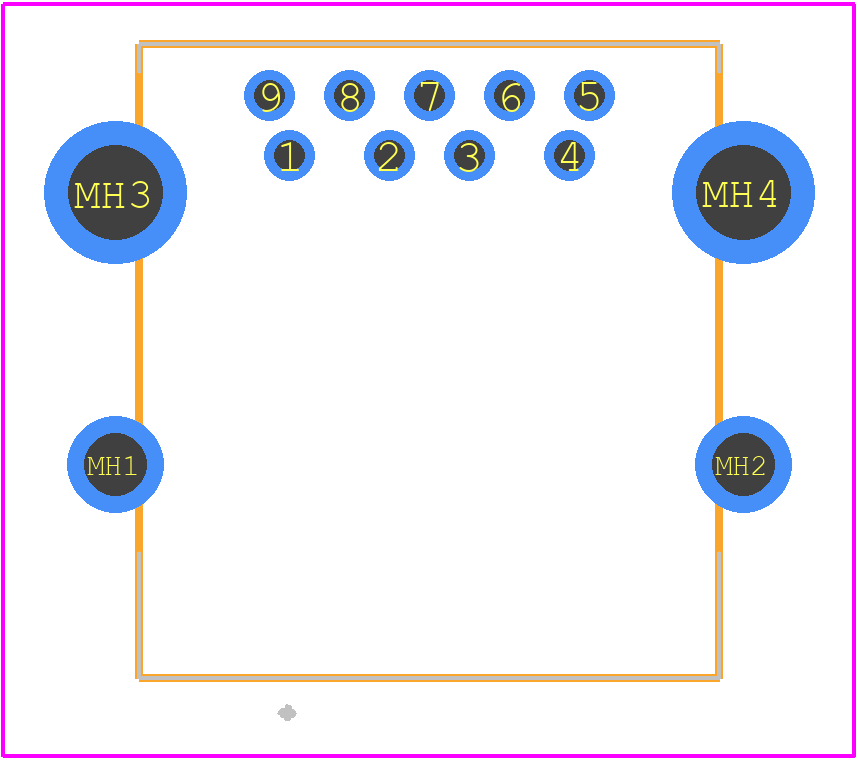

209B-DG02 - ATTEND PCB footprint - Other - Other - 209B-DG02-1

3D Models

209B-DG02 - ATTEND - 3D model - Other - 209B-DG02-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 209B-DG02
Part Number 209B-DG02
Manufacturer ATTEND
Pin Count 13
Part Category Connector
Package Category Other
Footprint Name Other - 209B-DG02-1
Released Date Sep 15, 2020
Last Modified Date Jan 27, 2026 10:35 AM UTC
Pinout / Pin List Click Here (Member Only)

209B-DG02 Details

Manufacturer Part Number:
209B-DG02
Manufacturer:
Attend Technology Inc

Trust Checks

System Verified

209B-DG02 Overview

Use the download button to access the 209B-DG02 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 209B-, or try a keyword search, such as DIP Switches
