21033211410 - HARTING

Description: M12 A-code 4pin male straight panel feed through pcb mount, IP20

Download 21033211410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033211410 - HARTING - PCB symbol
click to zoom
PCB Footprints

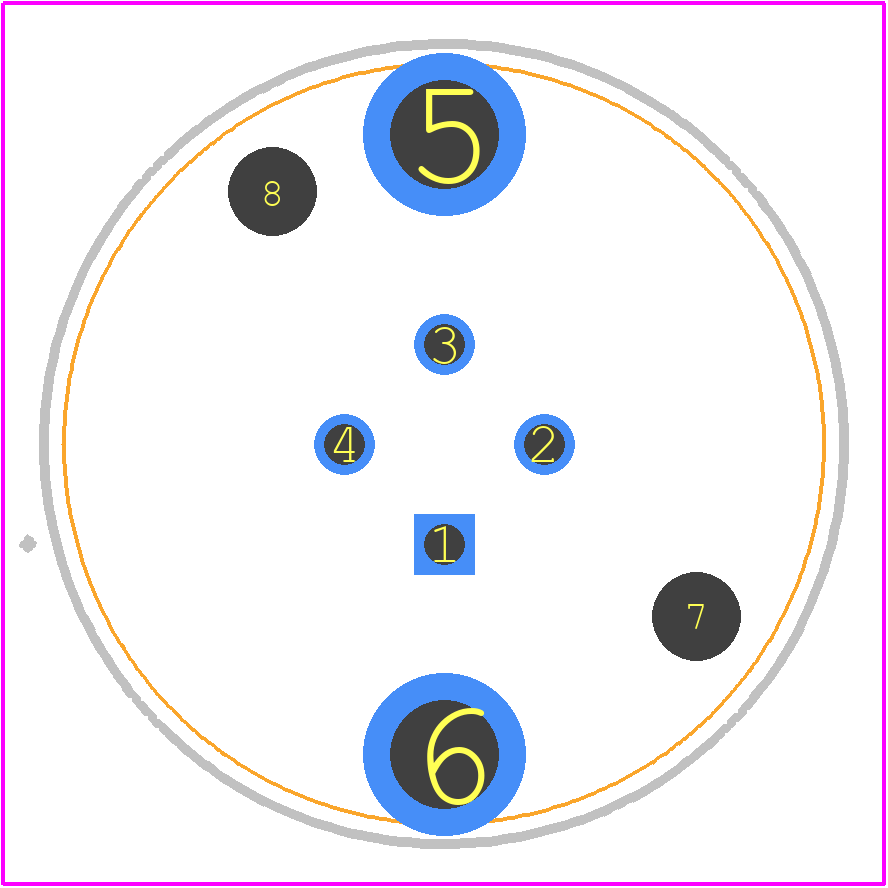

21033211410 - HARTING PCB footprint - Other - Other - 21033211410
click to zoom
3D Models
21033211410 - HARTING - 3D model - Other - 21033211410
click to zoom

21033211410 Details

  • Manufacturer Part Number:

    21033211410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

21033211410 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 21033211410 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 21033211410 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 21033211410 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity range of up to 95% RH.
  • The 21033211410 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • Yes, the 21033211410 connector is part of the HARTING Han series, which is a modular connector system that allows for compatibility with other Han series connectors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033211410 Overview

Use the download button to access the 21033211410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
