21033216410 - HARTING

Description: M12 A-code 4pin female straight panel feed through pcb mount, IP20

Download 21033216410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033216410 - HARTING - PCB symbol
click to zoom
PCB Footprints

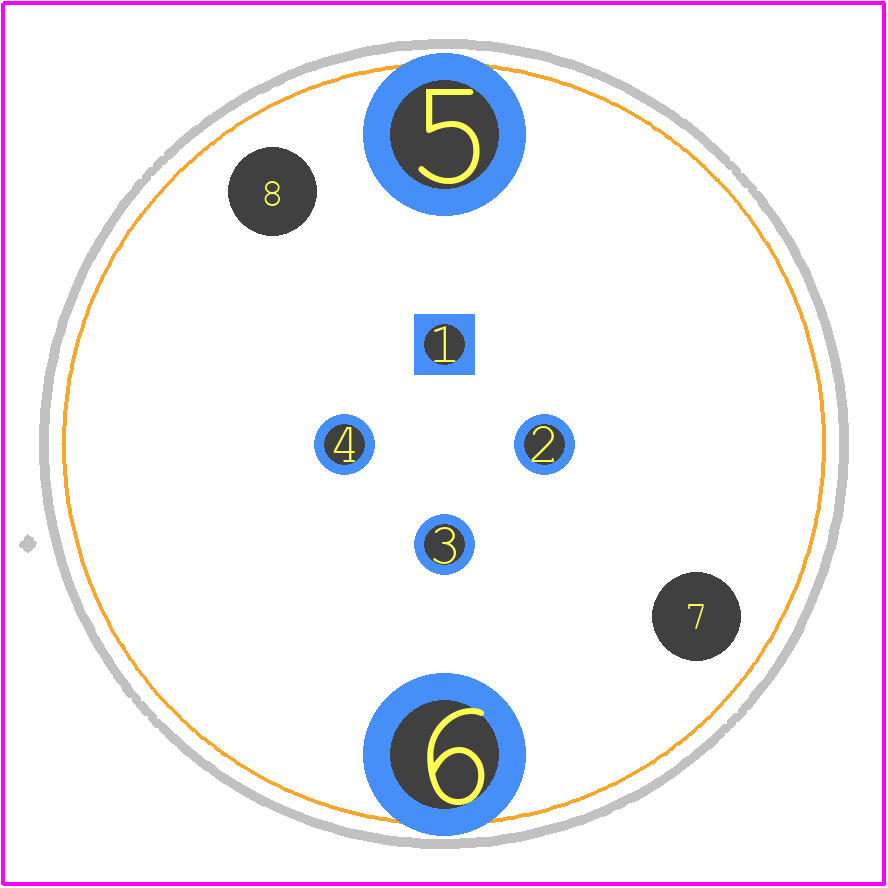

21033216410 - HARTING PCB footprint - Other - Other - 21033216410
click to zoom
3D Models
21033216410 - HARTING - 3D model - Other - 21033216410
click to zoom

21033216410 Details

  • Manufacturer Part Number:

    21033216410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 250V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033216410 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 21033216410 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 21033216410 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 21033216410 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and humidity resistance up to 95% RH (according to IEC 60068-2-78).
  • The 21033216410 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 21033216410 connector is designed to be compatible with other HARTING connectors in the same series, but it's recommended to check the specific compatibility with other connectors before use.
