21033812431 - HARTING

Description: M12 D-code 4pin female straight pcb mount, shielded version, with front mount housing (individual piece)

Download 21033812431 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033812431 - HARTING - PCB symbol
click to zoom

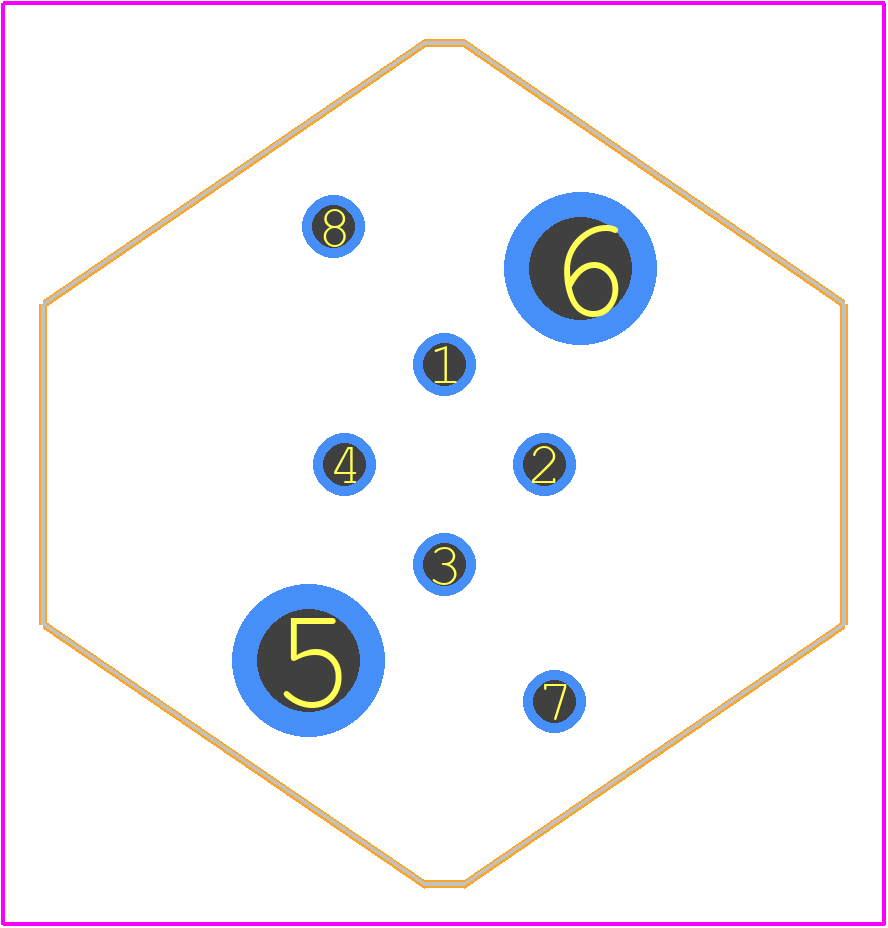

PCB Footprints
21033812431 - HARTING PCB footprint - Other - Other - 21033812431
click to zoom
3D Models
21033812431 - HARTING - 3D model - Other - 21033812431
click to zoom

21033812431 Details

  • Manufacturer Part Number:

    21033812431

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

21033812431 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 21033812431 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The operating temperature range for the 21033812431 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 21033812431 connector is designed to be compatible with other HARTING connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033812431 Overview

Use the download button to access the 21033812431 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
