21033814420 - HARTING

Description: M12 D-code 4pin female angled pcb connector, SMT, with transformer, shielded, (w/o housing)

Download 21033814420 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

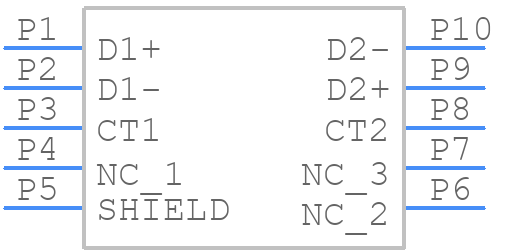

Symbol
21033814420 - HARTING - PCB symbol
click to zoom
PCB Footprints
21033814420 - HARTING PCB footprint - Other - Other - 21033814420-1
click to zoom
3D Models
21033814420 - HARTING - 3D model - Other - 21033814420-1
click to zoom

21033814420 Details

  • Manufacturer Part Number:

    21033814420

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Additional Feature:

    RATED CURRENT(SIGNAL): 3A; RATED VOLTAGE: 57V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

21033814420 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 21033814420 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 21033814420 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other demanding applications.
  • Yes, the 21033814420 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's environmental specifications to ensure the connector meets the specific requirements of your application.
  • The 21033814420 connector has a mating cycle life of at least 500 cycles, as per the IEC 61984 standard, ensuring reliable connections over an extended period.
  • The 21033814420 connector is designed to be compatible with other HARTING products and some third-party components. However, it's essential to verify compatibility before integrating the connector into your system.
